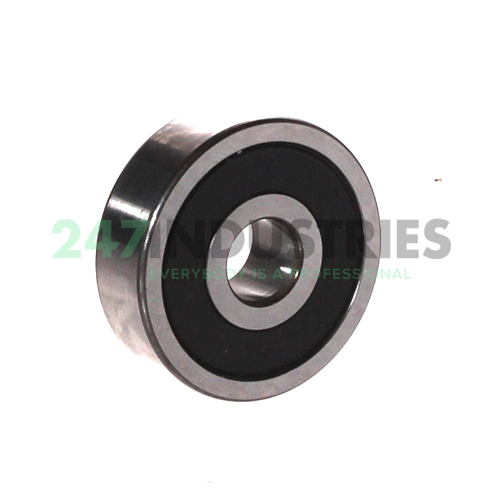

6300-B-2DRS-L278-C3-SNZ1 FAG

All dimensions

1. Inner (d) MM 10
2. Outer (D) MM 35
3. Width (B) MM 11
4. Inner (d) Inch 0.3937
5. Outer (D) Inch 1.378
6. Width (B) Inch 0.4331

Suffix description

1. B Modified Internal Construction
2. 2DRS Non Contact Rubber Seals
3. L278 Grease With A Lithium Complex Soap With Mineral Oil And/Or Synthetic Oil. Preferred Applications: Bearing Lubrication With A Temperature Range Of -30°C / 120°C, Long-Term And Continuous Operation For Rolling Bearings
4. C3 Internal Clearance Larger Than Normal
5. SNZ1 Stands For The FAG Brand

Technical details

1. Availability 186 pcs
2. Brand FAG
3. Item number 6300-B-2DRS-L278-C3-SNZ1 FAG
4. Also known as 6300B.2DRS.C3
   6300-B-2DRS-C3-SNZ1

5. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.053

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RU - Two Seals / Non Contact Type
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
