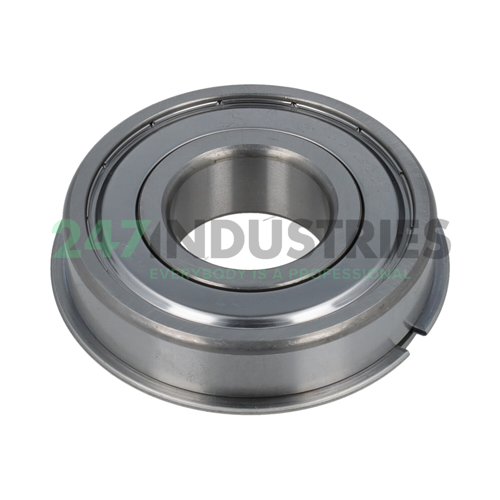

63/32ZNR C3 NSK

All dimensions

1. Inner (d) MM 32
2. Outer (D) MM 75
3. Width (B) MM 20
4. Inner (d) Inch 1.2598
5. Outer (D) Inch 2.9528
6. Width (B) Inch 0.7874

Suffix description

1. Z Shield Of Pressed Sheet Steel On One Side Of The Bearing
2. NR Snap Ring Groove In Bearing Outer Ring And Appropriate Snap Ring
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 8 pcs
2. Brand NSK
3. Item number 63/32ZNR C3 NSK
4. Also known as 63/32-ZNR/C3
   63/32-Z-NR-C3

5. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.382

Product Properties

1. Bore C - Cylindrical Bore
2. Seal Z - Steel Seal on One Side
3. Cage Type S - Steel or Standard Cage
4. External Modification NR - Groove and Snap Ring
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
