629-2RSH/C3 SKF

1,82 ex VAT
€ 2,20 in VAT
€ 2,20 in VAT
1,82 ex VAT

Guaranteed same day shipment on orders placed before 18.00h (CEST)
This product is available from stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

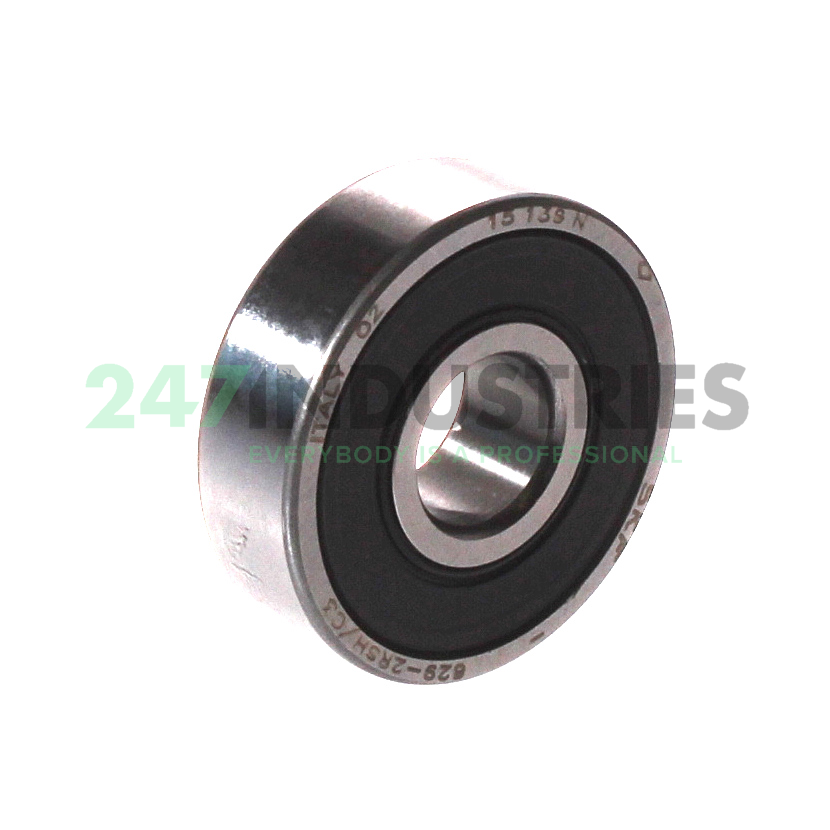

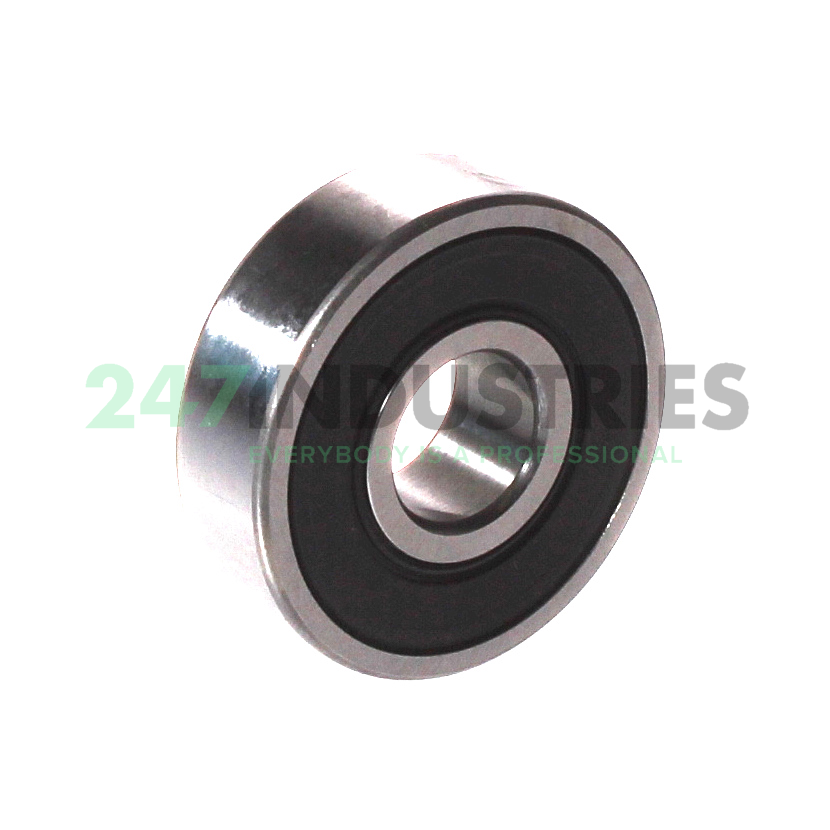

629-2RSH/C3 SKF

Miniature ball bearing

Stock
947 pcs in stock and ready for shipment
Brand SKF
Article number 629-2RSH/C3 SKF
Inside diameter 9mm
Outside diameter 26mm
Width 8mm
Product description

The 629-2RSH/C3 SKF is a miniature ball bearing. This is a very small single-row deep groove ball bearing. The design consists of an inner and an outer ring, with a ball and cage assembly in between. Thanks to their simple construction, these bearings require little maintenance. With their compact dimensions, miniature bearings are suitable for applications where space is limited.

Additionally, miniature ball bearings boast significant radial load-bearing capacity. The cage of the 629-2RSH/C3 SKF ensures that the balls do not touch each other and move in a controlled manner. This generates less heat and allows for high speeds to be reached. Miniature ball bearings are therefore widely used in situations where very high rotational rates are required.

Help with this product

Similar to: 629-2RSH/C3 SKF

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 9
  2. Outer (D) MM 26
  3. Width (B) MM 8
  4. Inner (d) Inch 0.3543
  5. Outer (D) Inch 1.0236
  6. Width (B) Inch 0.315

Suffix description

  1. 2RSH RSH Contact Seal On Both Sides Of The Bearing
  2. C3 Internal Clearance Larger Than Normal

Technical details

  1. Availability 947 pcs
  2. Brand SKF
  3. Item number 629-2RSH/C3 SKF
  4. Also known as 629-2RS1/C3
    629-2RS-C3
  5. EAN 7316571840017
  6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

  1. Weight (kg) 0.02

Product Properties

  1. Bore C - Cylindrical Bore
  2. Seal 2RH - High Speed Low Friction Seal on Two Sides
  3. Cage Type S - Steel or Standard Cage
  4. External Modification No External Modification
  5. Radial Internal Play C3 Internal Play (Higher than Cn)
  6. Precision Standard Precision
  7. Lubrication Standard Lubrication
  8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
  9. Special Treatment No Special Treatment
Show all details Show less

Order this product

629-2RSH/C3 SKF

629-2RSH/C3 SKF

947 pcs in stock and ready for shipment
Guaranteed same day shipment on orders placed before 18:00h (CET)
1,82 ex VAT
1,82 ex VAT

629-2RSH/C3 SKF

947 pcs in stock and ready for shipment
Guaranteed same day shipment on orders placed before 18:00h (CET)
UPS TNT iDeal, Mastercard, Visa, Paypall
