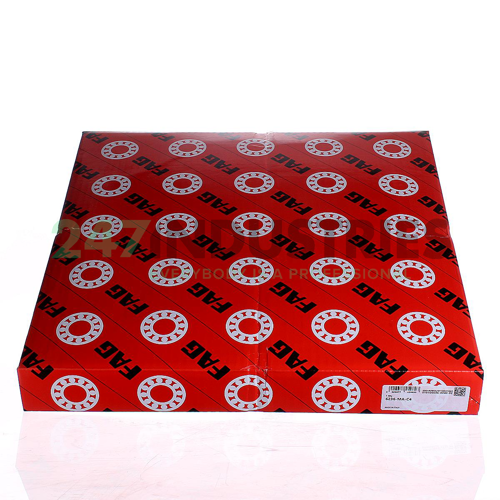

6236-MA-C4 FAG

All dimensions

1. Inner (d) MM 180,00
2. Outer (D) MM 320,00
3. Width (B) MM 52,00
4. Inner (d) Inch 7.0866
5. Outer (D) Inch 12.5984
6. Width (B) Inch 2.0472
7. Width (b) mm 52,00

Suffix description

1. MA Machined Brass Cage, Outer Ring Guided
2. C4 Bearing Internal Clearance Greater Than C3

Technical details

1. Availability 24 pcs
2. Brand FAG
3. Item number 6236-MA-C4 FAG
4. Also known as 0191066960040

5. EAN 4026677459893
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 18.2

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type MA - Brass Cage, Centered on Outer Ring
4. External Modification No External Modification
5. Radial Internal Play C4 Internal Play (Higher than C3)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 244000
2. Radial Dynamic Load Rating Cr (N) 240000
3. Basic static load rating, radial (C 0r) "244000.0000"
4. Limiting speed (n G) "3650.0000"
5. Reference speed (n ϑr) "2750.0000"
6. ECLASS number 23-05-08-01
7. ECLASS2 number 23-05-08-01
8. Medias description Deep groove ball bearing 62..-MA, single row, cf. DIN 625-1
