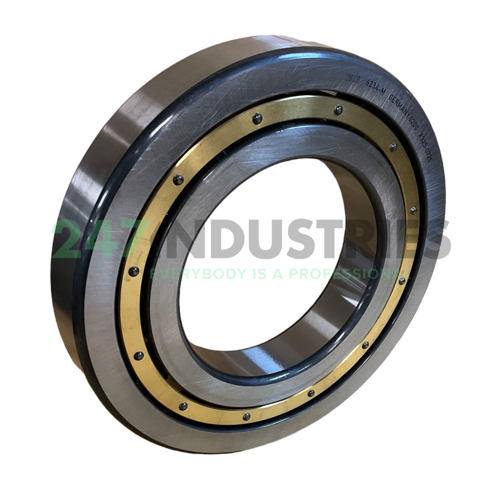

6234-M FAG

All dimensions

1. Inner (d) MM 170,00
2. Outer (D) MM 310,00
3. Width (B) MM 52,00
4. Inner (d) Inch 6.6929
5. Outer (D) Inch 12.2047
6. Width (B) Inch 2.0472
7. Width (b) mm 52,00

Suffix description

1. M Solid Brass Cage, Ball-Guided

Technical details

1. Availability 12 pcs
2. Brand FAG
3. Item number 6234-M FAG
4. Also known as 0191065800000
   0846078580000

5. EAN 4012801204163
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 17.5

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type M - Brass Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 224000
2. Radial Dynamic Load Rating Cr (N) 225000
3. Basic static load rating, radial (C 0r) "224000.0000"
4. Limiting speed (n G) "3800.0000"
5. Reference speed (n ϑr) "2950.0000"
6. ECLASS number 23-05-08-01
7. ECLASS2 number 23-05-08-01
8. Medias description Deep groove ball bearing 62..-M, single row, cf. DIN 625-1
