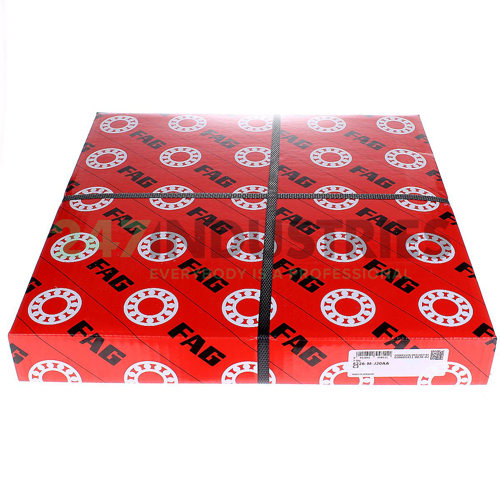

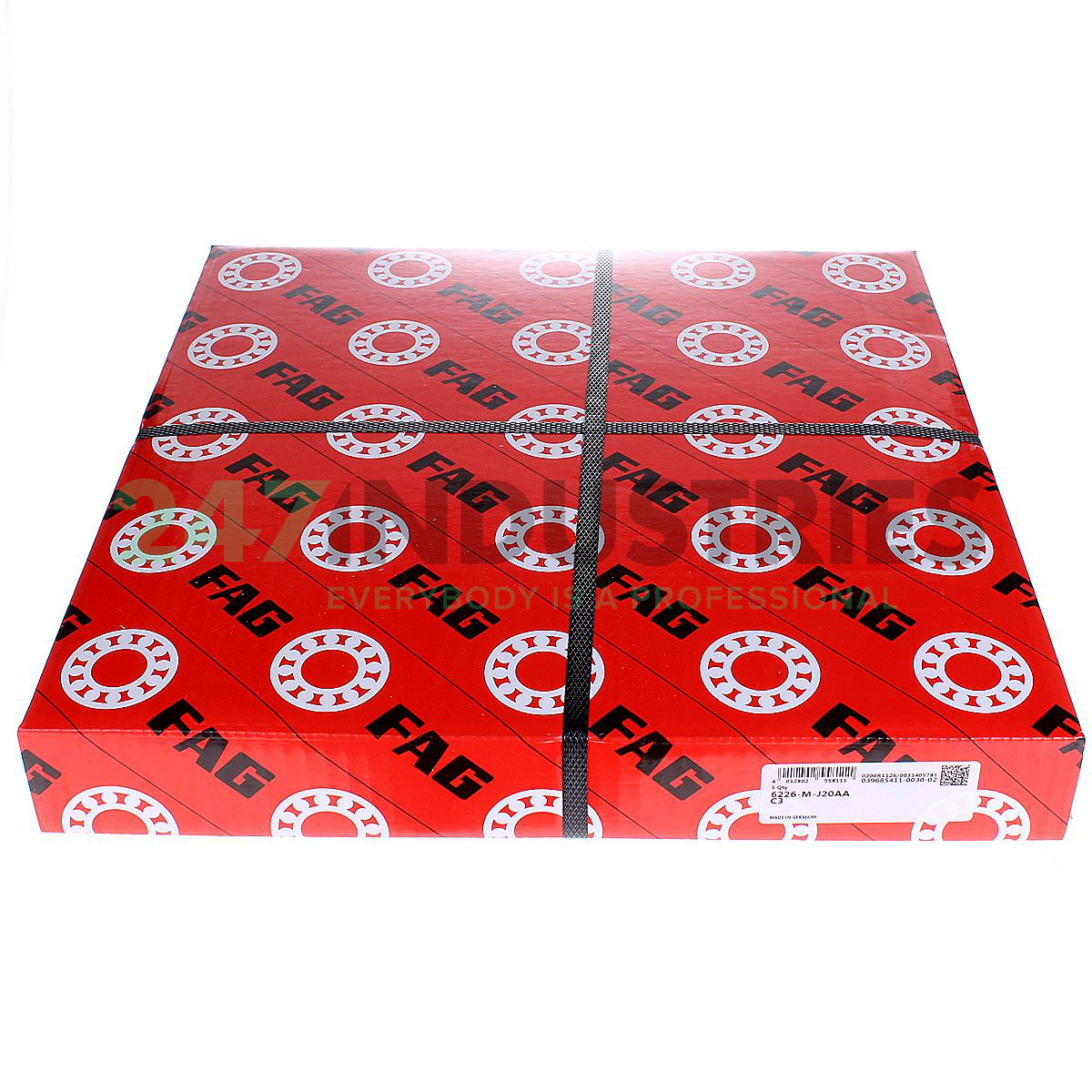

6226-M-J20AA-C3 FAG

All dimensions

1. Inner (d) MM 130
2. Outer (D) MM 230
3. Width (B) MM 40
4. Inner (d) Inch 5.1181
5. Outer (D) Inch 9.0551
6. Width (B) Inch 1.5748
7. Width (b) mm 40

Suffix description

1. M Solid Brass Cage, Ball-Guided
2. J20AA Current Insulation, Outer Ring Ceramic Coated, Breakdown Voltage DC: 3.000 V, Layer Thickness 200 μm, Ohmic Resistance: 50 MΩ. Speciality Humid Environments
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 5 pcs
2. Brand FAG
3. Item number 6226-M-J20AA-C3 FAG
4. Also known as 0396854110030

5. EAN 4012802558111
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 6.33

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type M - Brass Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Breakdown Voltage 1000v
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 146000
2. Radial Dynamic Load Rating Cr (N) 177000
3. Limiting speed (n G) 5000
4. Reference speed (n ϑr) 3900
5. ECLASS number 23-05-08-01
6. ECLASS2 number 23-05-08-01
7. Medias description Deep groove ball bearing 62..-M-J20AA, single row, cf. DIN 625-1
