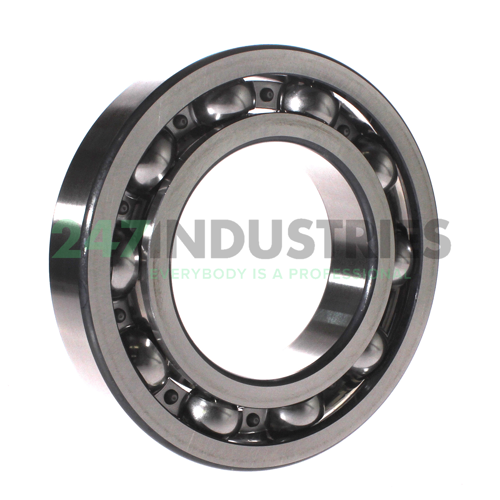

6222-C2 FAG

All dimensions

1. Inner (d) MM 110
2. Outer (D) MM 200
3. Width (B) MM 38
4. Inner (d) Inch 4.3307
5. Outer (D) Inch 7.874
6. Width (B) Inch 1.4961
7. Width (b) mm 38

Suffix description

1. C2 Bearing Internal Clearance Smaller Than Normal

Technical details

1. Availability 0 pcs
2. Brand FAG
3. Item number 6222-C2 FAG
4. Also known as 0167218880020

5. EAN 4012801278416
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 4.48

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C2 Internal Play (Less than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 117000
2. Radial Dynamic Load Rating Cr (N) 153000
3. Limiting speed (n G) 4450
4. Reference speed (n ϑr) 4500
5. ECLASS number 23-05-08-01
6. ECLASS2 number 23-05-08-01
7. Medias description Deep groove ball bearing 62, single row, cf. DIN 625-1
