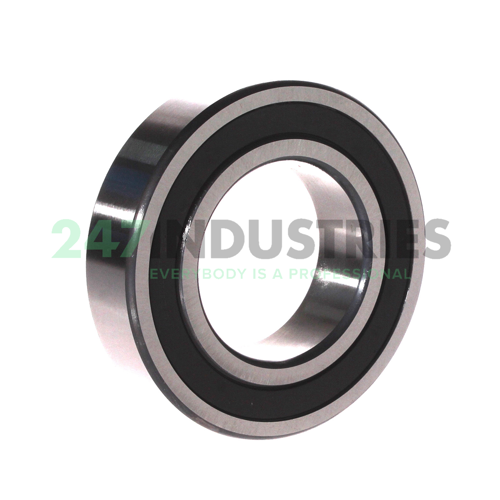

62211-2RSR FAG

All dimensions

1. Inner (d) MM 55,00
2. Outer (D) MM 100,00
3. Width (B) MM 25,00
4. Inner (d) Inch 2.1654
5. Outer (D) Inch 3.9370
6. Width (B) Inch 0.9843
7. Width (b) mm 25,00

Suffix description

1. 2RSR Rubber Seals At Each Side Of The Bearing

Technical details

1. Availability 48 pcs
2. Brand FAG
3. Item number 62211-2RSR FAG
4. Also known as 0167218610000
   62211 2RS
   62211-2RS1
   62211DDU
   62211EE
   62211LLU

5. EAN 4012801164801
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.699

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 29000
2. Radial Dynamic Load Rating Cr (N) 44500
3. Basic static load rating, radial (C 0r) "29000.0000"
4. Limiting speed (n G) "3900.0000"
5. ECLASS number 23-05-08-01
6. ECLASS2 number 23-05-08-01
7. Medias description Deep groove ball bearings 622..-2RSR, main dimensions to DIN 625-1, lip seals on both sides
