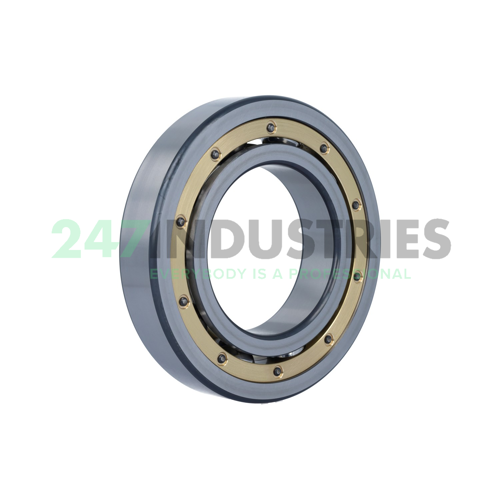

6221-MA-S1-C3 FAG

All dimensions

1. Inner (d) MM 105
2. Outer (D) MM 190
3. Width (B) MM 36
4. Width (b) mm 36

Suffix description

1. MA Machined Brass Cage, Outer Ring Guided
2. S1 Bearing Rings Or Washers Dimensionally Stabilized For Use At Operating Temperatures Up To +200°C (392°F)
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 2 pcs on Fri 9 Jan
2. Brand FAG
3. Item number 6221-MA-S1-C3 FAG
4. Also known as 0388978140030

5. EAN 4026677895868
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 3.86

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type MA - Brass Cage, Centered on Outer Ring
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization S1 - Temperatures up to 200 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 105000
2. Limiting speed (n G) 6100
3. Reference speed (n ϑr) 4650
