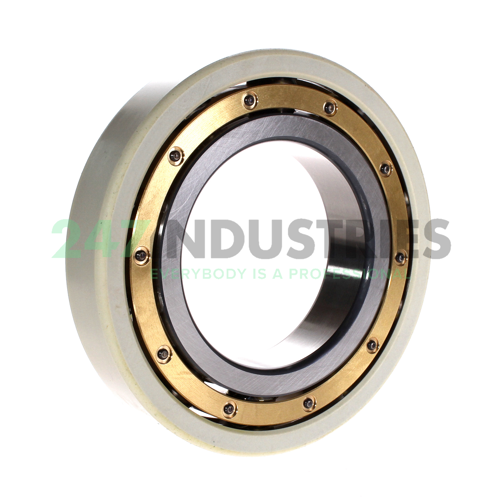

6221-M-J20AA-C4 FAG

All dimensions

1. Inner (d) MM 105,00
2. Outer (D) MM 190,00
3. Width (B) MM 36,00
4. Inner (d) Inch 4.1339
5. Outer (D) Inch 7.4803
6. Width (B) Inch 1.4173
7. Width (b) mm 36,00

Suffix description

1. M Solid Brass Cage, Ball-Guided
2. J20AA Coating Which Consists Of Oxide Ceramic, It Is Applied By Plasma Spraying And Then Sealed With Synthetic Resin. Speciality Humid Environments
3. C4 Bearing Internal Clearance Greater Than C3

Technical details

1. Availability 2 pcs on 9 May
2. Brand FAG
3. Item number 6221-M-J20AA-C4 FAG
4. Also known as 0587109570040
   6221M/C4VL0241

5. EAN 4012802313420
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 3.86

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type M - Brass Cage
4. External Modification No External Modification
5. Radial Internal Play C4 Internal Play (Higher than C3)
6. Precision Breakdown Voltage 1000v
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) "105000.0000"
2. Limiting speed (n G) "6100.0000"
3. Reference speed (n ϑr) "4650.0000"
4. ECLASS number 23-05-08-01
5. ECLASS2 number 23-05-08-01
