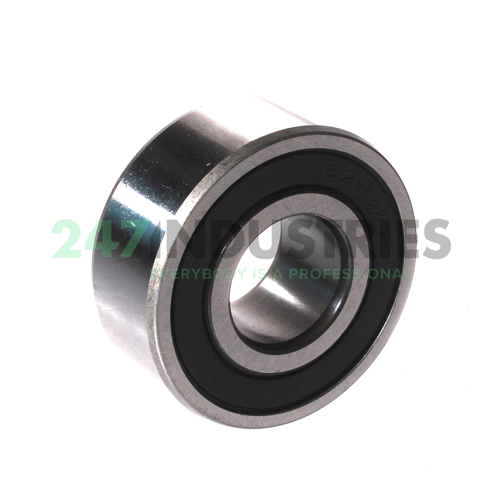

62203-A-2RSR FAG

All dimensions

1. Inner (d) MM 17,00
2. Outer (D) MM 40,00
3. Width (B) MM 16,00
4. Inner (d) Inch 0.6693
5. Outer (D) Inch 1.5748
6. Width (B) Inch 0.6299
7. Width (b) mm 16,00

Suffix description

1. A Internal Design Modification
2. 2RSR Rubber Seals At Each Side Of The Bearing

Technical details

1. Availability 216 pcs
2. Brand FAG
3. Item number 62203-A-2RSR FAG
4. Also known as 0596501330000

5. EAN 4012802330311
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.085

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 4750
2. Radial Dynamic Load Rating Cr (N) 10000
3. Basic static load rating, radial (C 0r) "4760.0000"
4. Limiting speed (n G) "11100.0000"
5. ECLASS number 23-05-08-01
6. ECLASS2 number 23-05-08-01
