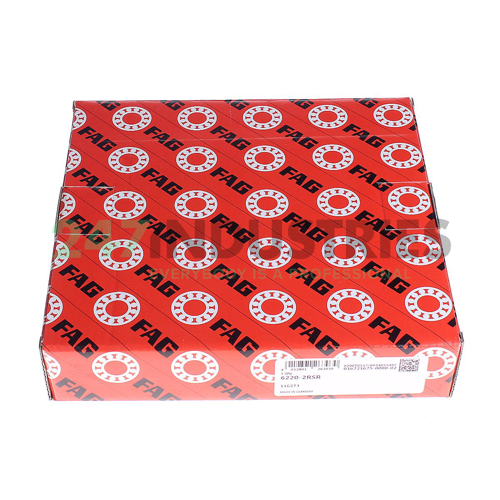

6220-2RSR FAG

All dimensions

1. Inner (d) MM 100
2. Outer (D) MM 180
3. Width (B) MM 34
4. Inner (d) Inch 3.937
5. Outer (D) Inch 7.0866
6. Width (B) Inch 1.3386
7. Width (b) mm 34

Suffix description

1. 2RSR Rubber Seals At Each Side Of The Bearing

Technical details

1. Availability 44 pcs
2. Brand FAG
3. Item number 6220-2RSR FAG
4. Also known as 0167216750000

5. EAN 4012801263030
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 3.14

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 93000
2. Radial Dynamic Load Rating Cr (N) 130000
3. Limiting speed (n G) 2140
4. ECLASS number 23-05-08-01
5. ECLASS2 number 23-05-08-01
6. Medias description Deep groove ball bearing 62..-2RSR, single row, cf. DIN 625-1
