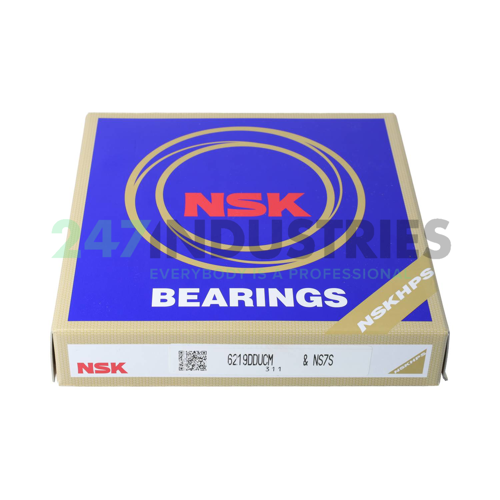

6219DDU CM NSK

All dimensions

1. Inner (d) MM 95
2. Outer (D) MM 170
3. Width (B) MM 32
4. Inner (d) Inch 3.7402
5. Outer (D) Inch 6.6929
6. Width (B) Inch 1.2598

Suffix description

1. DDU Rubber Seals At Each Side Of The Bearing
2. CM Ball Bearing, Special Radial Internal Clearance For Electric Motors, Can Be Used As Standard 'CN' Clearance

Technical details

1. Availability 0 pcs
2. Brand NSK
3. Item number 6219DDU CM NSK
4. Also known as 6219 2RS
   6219-2RS1
   6219-2RS1/QE6
   6219-2RSR
   6219EE
   6219LLU

5. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 2.62

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
