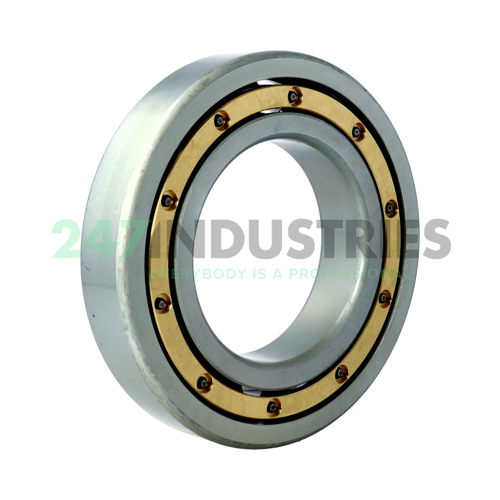

6219-M-RROC-C4 FAG

All dimensions

1. Inner (d) MM 95
2. Outer (D) MM 170
3. Width (B) MM 32
4. Inner (d) Inch 3.7402
5. Outer (D) Inch 6.6929
6. Width (B) Inch 1.2598
7. Width (b) mm 32

Suffix description

1. M Solid Brass Cage, Ball-Guided
2. RROC Protected Against Corrosion By Corrotect® Special Coating - Cr(VI)-Free
3. C4 Bearing Internal Clearance Greater Than C3

Technical details

1. Availability 1 pc
2. Brand FAG
3. Item number 6219-M-RROC-C4 FAG
4. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 3.38

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type M - Brass Cage
4. External Modification No External Modification
5. Radial Internal Play C4 Internal Play (Higher than C3)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 82000
2. Limiting speed (n G) 6900
3. Reference speed (n ϑr) 4950
