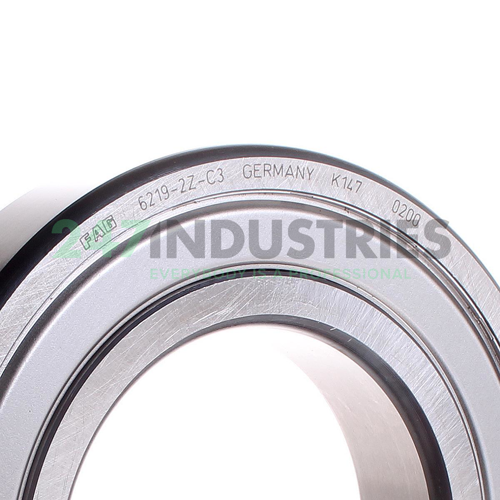

6219-2Z-C3 FAG

All dimensions

1. Inner (d) MM 95,00
2. Outer (D) MM 170,00
3. Width (B) MM 32,00
4. Inner (d) Inch 3.7402
5. Outer (D) Inch 6.6929
6. Width (B) Inch 1.2598
7. Width (b) mm 32,00

Suffix description

1. 2Z Two Shields
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 10 pcs
2. Brand FAG
3. Item number 6219-2Z-C3 FAG
4. Also known as 0167216080030

5. EAN 4012801278140
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 2.782

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 82000
2. Radial Dynamic Load Rating Cr (N) 116000
3. Basic static load rating, radial (C 0r) "82000.0000"
4. Limiting speed (n G) "4550.0000"
5. Reference speed (n ϑr) "4950.0000"
6. ECLASS number 23-05-08-01
7. ECLASS2 number 23-05-08-01
8. Medias description Deep groove ball bearing 62..-2Z, single row, cf. DIN 625-1

Downloads and links

1. Link to manufacturer Link to manufacturer
