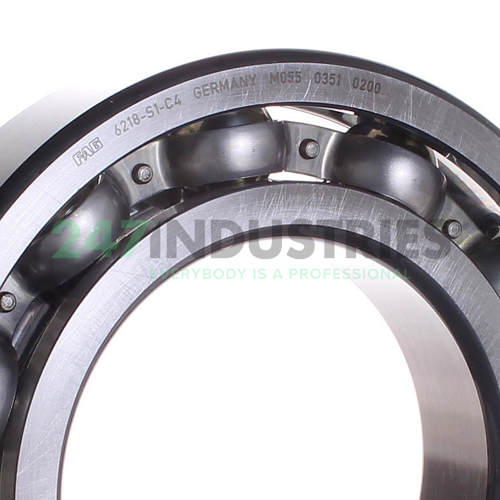

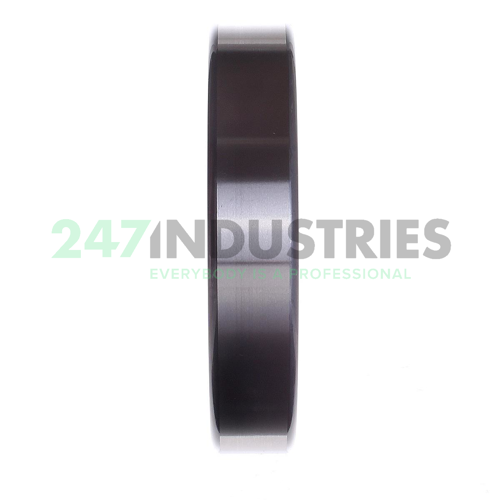

6218-S1-C4 FAG

All dimensions

1. Inner (d) MM 90,00
2. Outer (D) MM 160,00
3. Width (B) MM 30,00
4. Inner (d) Inch 3.5433
5. Outer (D) Inch 6.2992
6. Width (B) Inch 1.1811
7. Width (b) mm 30,00

Suffix description

1. S1 Bearing Rings Or Washers Dimensionally Stabilized For Use At Operating Temperatures Up To +200°C (392°F)
2. C4 Bearing Internal Clearance Greater Than C3

Technical details

1. Availability 0 pcs
2. Brand FAG
3. Item number 6218-S1-C4 FAG
4. Also known as 0390494850040

5. EAN 4012801277921
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 2.15

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C4 Internal Play (Higher than C3)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization S1 - Temperatures up to 200 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 74000
2. Radial Dynamic Load Rating Cr (N) 102000
3. Basic static load rating, radial (C 0r) "74000.0000"
4. Limiting speed (n G) "6300.0000"
5. Reference speed (n ϑr) "5100.0000"
6. ECLASS number 23-05-08-01
7. ECLASS2 number 23-05-08-01
8. Medias description Deep groove ball bearing 62, single row, cf. DIN 625-1

Downloads and links

1. Link to manufacturer Link to manufacturer
