6218-M-J20AA-C3 FAG

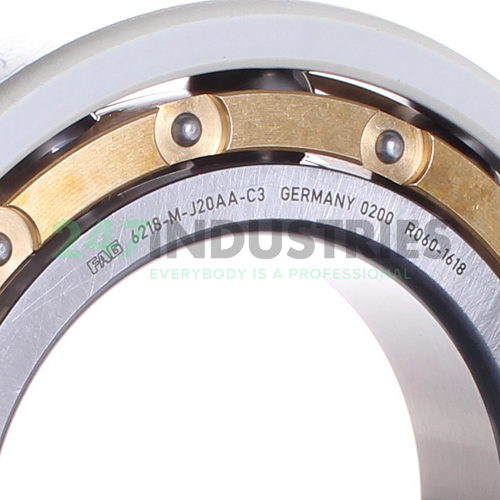

The 6218-M-J20AA-C3 FAG bearing is a single row deep groove ball bearing with a brass cage, a cylindrical bore and no seal.

Stock
6 pcs in stock and ready for shipment
Brand FAG
Article number 6218-M-J20AA-C3 FAG
Inside diameter 90mm
Outside diameter 160mm
Width 30mm
Product description

About the 6218-M-J20AA-C3 FAG

The 6218-M-J20AA-C3 FAG is an electrically insulated deep groove ball bearing. A special coating on the outer ring (J20AA) protects against bearing damage and eventual failure due to the passage of electric current.

Electrically insulated bearings are marketed by FAG with the suffix J20. The J20AA indicates the addition of an aluminum oxide coating on the outer ring to withstand voltages up to 3.000 V DC.

Specs 6218-M-J20AA-C3 FAG

The 6218-M-J20AA-C3 FAG can be seen as an upgrade for the standard non-insulated 6218-M-C3 ball bearing with a protection against electric current passage. The specifications are therefore identical to the 6218-M-C3 deep groove ball bearing.

The 6218-M-J20AA-C3 FAG has an inner dimension or bore (d) of 90mm, an outer dimension (D) of 160mm and a width or thickness (B) of 30mm. The 6218-M-J20AA-C3 FAG is open on both sides (it has no seals), has a brass cage (M)and an internal play greater than Normal (C3). FAG current-insulating bearings with a basic coated outer ring, like the 6218-M-J20AA-C3 FAG can withstand voltages up to 3.000 volt. The weight of the 6218-M-J20AA-C3 FAG is 2,62 kg.

Suffix explanation 6218-M-J20AA-C3 FAG

  • M: Machined Brass Cage, Ball Centered.
  • J20AA: External surfaces of the outer ring coated with aluminum oxide. The coating is sealed with a resin to protect against the conductive effects of water and moisture. This basic coating can withstand voltages up to 3.000 V DC.
  • C3: Internal clearance greater than Normal. The extra internal clearance allows expansion due to high speeds or temperatures.

Why use FAG current-insulating bearings?

In general, it is difficult to eliminate the causes of electrical voltage in a bearing. Under unfavorable conditions the passage of electric current causes damage to raceways and rolling elements as well as degradation of the lubricant. Which, in addition, will result in premature, unexpected failure of a motor or generator. Therefore FAG current-insulating bearings are commonly used in applications where damaging effect of electrical erosion is likely, such as:

  • Industrial electric motors
  • Wheel sets and traction motors (rail vehicles)
  • Power transmissions
  • Generators (wind power)

Choosing FAG current-insulating bearings for your application will prove to be most cost-effective, considering the repair work and cost of machine downtime and lost production, in case of bearing failure due to electric current passage. To prevent these extra cost it's recommended to opt for electrically insulated in the planning stage. As a result, you will benefit from reduced maintenance costs and higher machine availability. FAG current-insulating bearings like the 6218-M-J20AA-C3 FAG are available for this purpose.

  • Protection against electric current passage
  • Prevent downtime and lost production
  • Outer ring coated with aluminium oxide
  • Interchangeable with standard bearings (same dimensions and performance)

About FAG

FAG is a brand of the Schaeffler Group Industrial originated in Germany. The Schaeffler Group produces two major bearing brands: FAG and INA. FAG is known for its strength in innovation, high-quality standards and wide portfolio of bearings and related products. If you choose to buy a product from FAG you are ensured of a top quality product.

Read more Show less
Help with this product

Similar to: 6218-M-J20AA-C3 FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 90
  2. Outer (D) MM 160
  3. Width (B) MM 30

Technical details

  1. Availability 6 pcs
  2. Brand FAG
  3. Item number 6218-M-J20AA-C3 FAG
  4. Technical details (M-J20AA-C3) M=Solid Brass Cage, Ball-Guided. J20AA=(VL0241-SKF)=(Segment Precision, Code 10)=Coating Which Consists Of Oxide Ceramic, It Is Applied By Plasma Spraying And Then Sealed With Synthetic Resin. Speciality Humid Environments. C3=Internal Clearance Larger Than Normal.
  5. Also known as 4012802002874
  6. Category Deep Groove Ball Bearings Single Row
  7. Description from Medias Deep groove ball bearing
  8. Weight (kg) 2.62
  9. Manufacturer Part Number (MPN) 6218-M-J20AA-C3
  10. Bore C - Cylindrical Bore
  11. Seal No Seal
  12. Cage Type M - Brass Cage
  13. Radial Internal Play C3 Internal Play (Higher than Cn)
  14. Lubrication Standard Lubrication
  15. Heat Stabilization No Heat Stabilization - Temperatures up to 120°C
