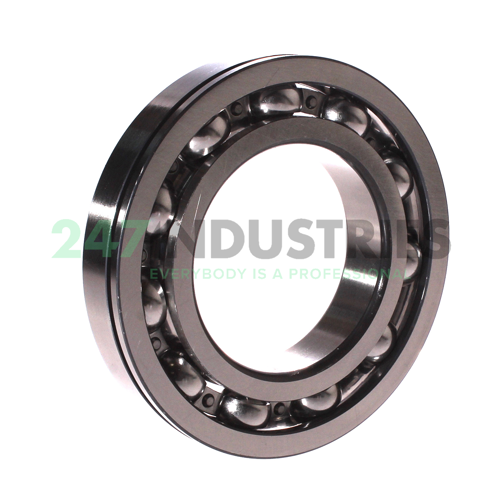

6217-N FAG

All dimensions

1. Inner (d) MM 85,00
2. Outer (D) MM 150,00
3. Width (B) MM 28,00
4. Inner (d) Inch 3.3465
5. Outer (D) Inch 5.9055
6. Width (B) Inch 1.1024
7. Width (b) mm 28,00

Suffix description

1. N Snap Ring Groove In The Outer Ring

Technical details

1. Availability 9 pcs
2. Brand FAG
3. Item number 6217-N FAG
4. Also known as 0191054790000

5. EAN 4012801203593
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 1.76

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification N - Snap Ring Groove in Outer Ring
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) "64000.0000"
2. Limiting speed (n G) "6700.0000"
3. Reference speed (n ϑr) "5300.0000"
4. ECLASS number 23-05-08-01
5. ECLASS2 number 23-05-08-01

Downloads and links

1. Link to manufacturer Link to manufacturer
