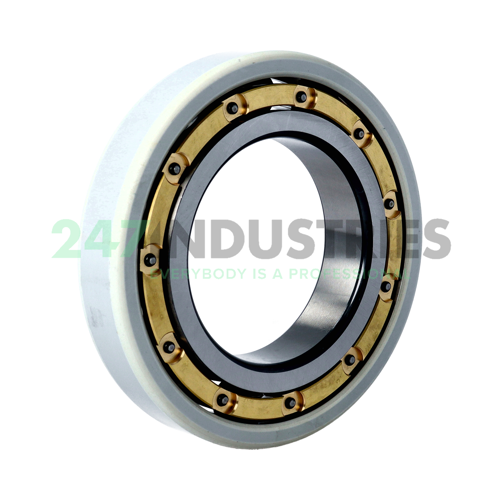

6217-M-S1-J20B-H67C-C4 FAG

All dimensions

1. Outer (D) MM 150
2. Width (B) MM 28
3. Outer (D) Inch 5.9055
4. Width (B) Inch 1.1024

Suffix description

1. M Solid Brass Cage, Ball-Guided
2. S1 Bearing Rings Or Washers Dimensionally Stabilized For Use At Operating Temperatures Up To +200°C (392°F)
3. J20B Current Insulation, Outer Ring Ceramic Coated, Breakdown Voltage DC: 500 V, Layer Thickness 100 μm, Ohmic Resistance: 50 MΩ
4. H67C Testings For The French Railways
5. C4 Bearing Internal Clearance Greater Than C3

Technical details

1. Availability 1 pc
2. Brand FAG
3. Item number 6217-M-S1-J20B-H67C-C4 FAG
4. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 2.14

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type M - Brass Cage
4. External Modification No External Modification
5. Radial Internal Play C4 Internal Play (Higher than C3)
6. Precision VL - Breakdown Voltage To 500v
7. Lubrication Standard Lubrication
8. Heat Stabilization S1 - Temperatures up to 200 °C
9. Special Treatment No Special Treatment
