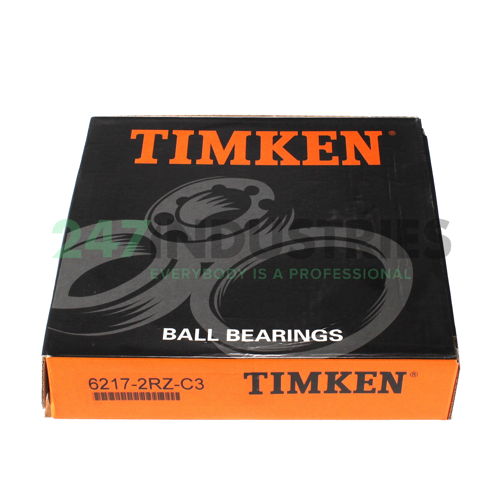

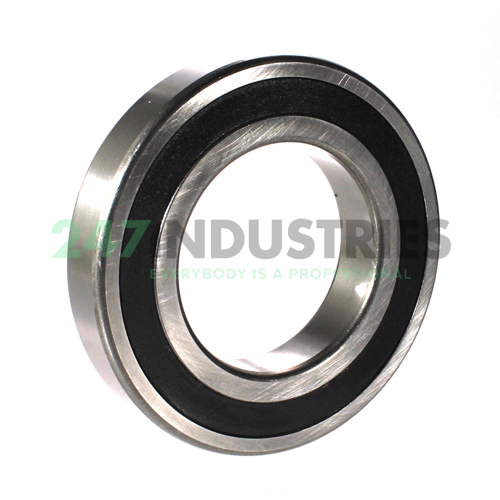

6217-2RZ-C3 Timken

All dimensions

1. Inner (d) MM 85
2. Outer (D) MM 150
3. Width (B) MM 28
4. Inner (d) Inch 3.3465
5. Outer (D) Inch 5.9055
6. Width (B) Inch 1.1024

Suffix description

1. 2RZ Ball Bearing, With Low-Friction Seal At Both Sides. Seal Consists Of Sheet Steel Washer With Vulcanized Rubber
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 4 pcs
2. Brand Timken
3. Item number 6217-2RZ-C3 Timken
4. EAN 0013992221438
5. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 1.795

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RZ - Rubber and Steel Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
