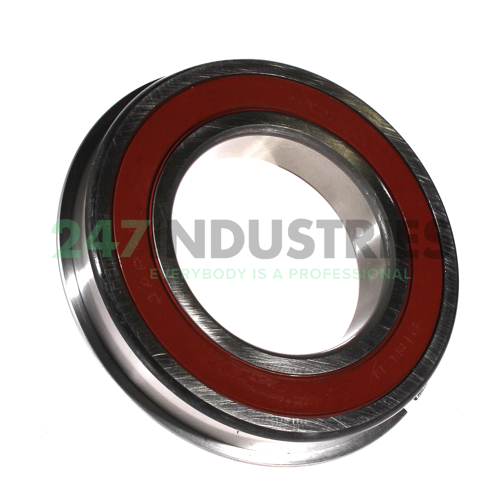

6216LLUNR/2AS NTN

All dimensions

1. Inner (d) MM 80
2. Outer (D) MM 140
3. Width (B) MM 26
4. Inner (d) Inch 3.1496
5. Outer (D) Inch 5.5118
6. Width (B) Inch 1.0236

Suffix description

1. LLU Rubber Seals At Each Side Of The Bearing
2. NR Snap Ring Groove In Bearing Outer Ring And Appropriate Snap Ring
3. 2A Lubricant, Shell Oil Co., Alvania #2 Grease, Mil-G-18709A
4. S Standard Fill

Technical details

1. Availability 0 pcs
2. Brand NTN
3. Item number 6216LLUNR/2AS NTN
4. Also known as 6216-2RS1NR
   6216LLUNR

5. EAN 4547359371475
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 1.432

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification NR - Groove and Snap Ring
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
