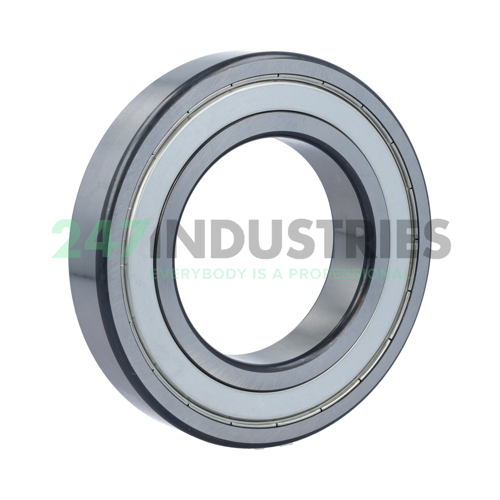

6216-2Z-L069-C4 FAG

All dimensions

1. Inner (d) MM 80
2. Outer (D) MM 140
3. Width (B) MM 26
4. Width (b) mm 26

Suffix description

1. 2Z Non-Contact Sealing Shield On Both Sides (Sheet Metal Gap Seal)
2. L069 Insert Bearing Grease For Wide Temperature Range - Polycarbamide Ester Oil - –40°C to +180°C
3. C4 Bearing Internal Clearance Greater Than C3

Technical details

1. Availability 2 pcs on Thu 8 Jan
2. Brand FAG
3. Item number 6216-2Z-L069-C4 FAG
4. Also known as 0852739290040
   6216-2Z/C4
   6216-2Z-C4

5. EAN 4054364582760
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 1.415

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C4 Internal Play (Higher than C3)
6. Precision Standard Precision
7. Lubrication Higher and Lower Temperature Grease
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 55000
2. Limiting speed (n G) 6200
3. Reference speed (n ϑr) 5500
