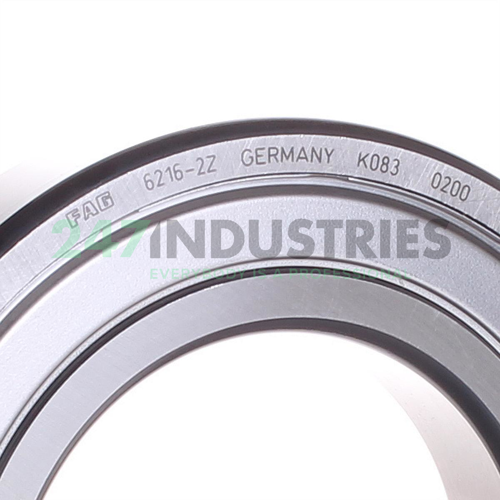

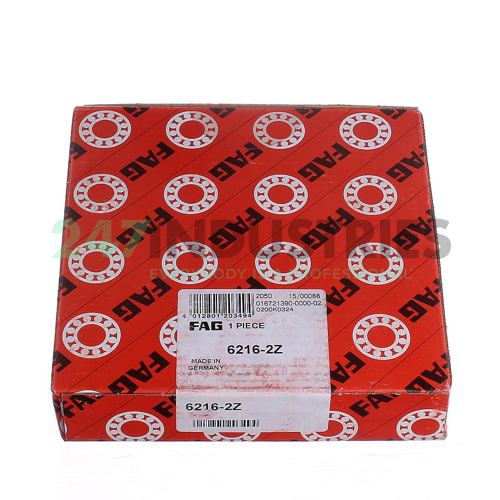

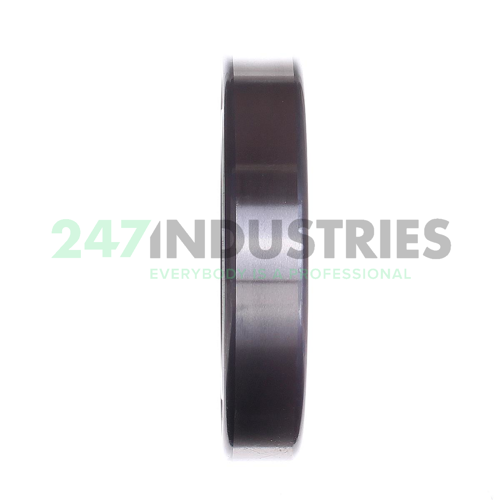

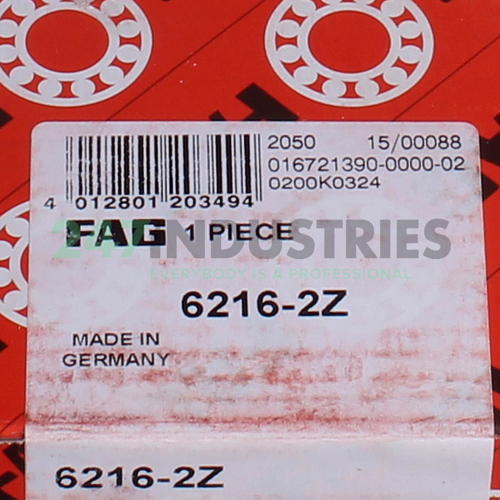

6216-2Z FAG

All dimensions

1. Outer (D) MM 140
2. Width (B) MM 26
3. Outer (D) Inch 5.5118
4. Width (B) Inch 1.0236

Suffix description

1. 2Z Non-Contact Sealing Shield On Both Sides (Sheet Metal Gap Seal)

Technical details

1. Availability 153 pcs
2. Brand FAG
3. Item number 6216-2Z FAG
4. Also known as 0167213900000
   6216-C-2Z
   6216ZZ

5. EAN 4012801203494
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 1.415

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Medias description Deep groove ball bearing 62..-2Z, single row, cf. DIN 625-1
