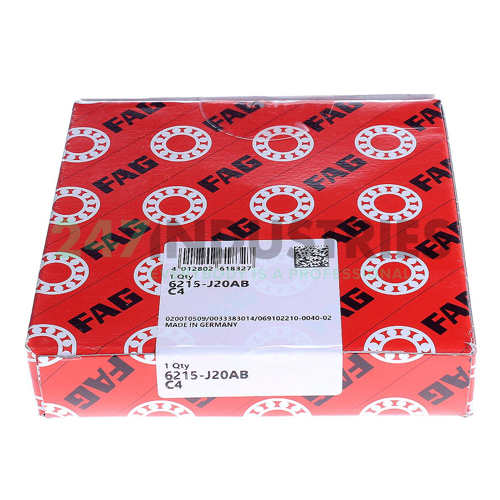

6215-J20AB-C4 FAG

All dimensions

1. Inner (d) MM 75
2. Outer (D) MM 130
3. Width (B) MM 25
4. Width (b) mm 25

Suffix description

1. J20AB Current Insulation, Outer Ring Ceramic Coated, Breakdown Voltage DC: 1.000 V, Layer Thickness 100 μm, Ohmic Resistance: 50 MΩ. Speciality Humid Environments
2. C4 Bearing Internal Clearance Greater Than C3

Technical details

1. Availability 4 pcs
2. Brand FAG
3. Item number 6215-J20AB-C4 FAG
4. Also known as 0691022100040

5. EAN 4012802618327
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 1.2

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C4 Internal Play (Higher than C3)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment J20AB

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 49000
2. Radial Dynamic Load Rating Cr (N) 70000
3. Limiting speed (n G) 7800
4. Reference speed (n ϑr) 5900
5. ECLASS number 23-05-08-01
6. ECLASS2 number 23-05-08-01
7. Medias description Deep groove ball bearing 62..-J20AB, single row, cf. DIN 625-1
