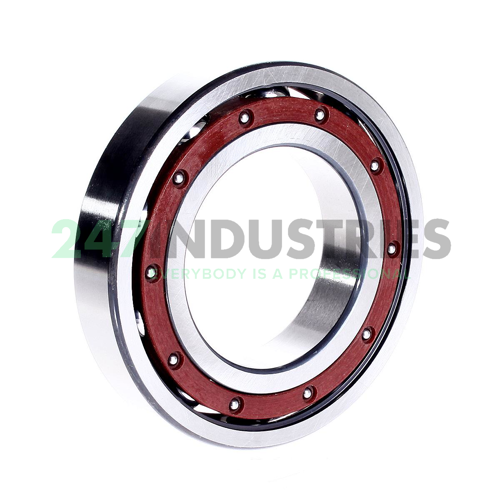

6214-TB-C3 FAG

All dimensions

1. Inner (d) MM 70,00
2. Outer (D) MM 125,00
3. Width (B) MM 24,00
4. Inner (d) Inch 2.7559
5. Outer (D) Inch 4.9213
6. Width (B) Inch 0.9449

Suffix description

1. TB Window-Type Cage Of Fabric Reinforced Phenolic Resin, Inner Ring Centered
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 12 pcs
2. Brand FAG
3. Item number 6214-TB-C3 FAG
4. Also known as 0384049150030

5. EAN 4012801277457
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 1.07

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type TB - Hard Fiber Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. ECLASS number 23-05-08-01
2. ECLASS2 number 23-05-08-01
