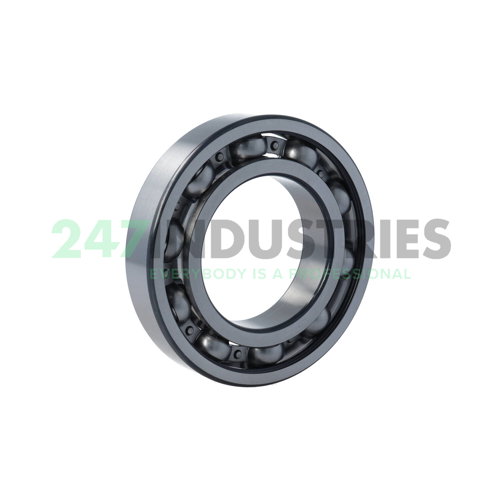

6214-P5-C2 FAG

All dimensions

1. Inner (d) MM 70,00
2. Outer (D) MM 125,00
3. Width (B) MM 24,00
4. Inner (d) Inch 2.7559
5. Outer (D) Inch 4.9213
6. Width (B) Inch 0.9449
7. Width (b) mm 24,00

Suffix description

1. P5 Dimensional And Running Accuracy To ISO Tolerance Class 5
2. C2 Bearing Internal Clearance Smaller Than Normal

Technical details

1. Availability 1 pc
2. Brand FAG
3. Item number 6214-P5-C2 FAG
4. Also known as 0384048420020

5. EAN 4012801989206
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 1.07

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C2 Internal Play (Less than Cn)
6. Precision P5 Precision (Higher than P6)
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 44000
2. Radial Dynamic Load Rating Cr (N) 66000
3. Basic static load rating, radial (C 0r) "44000.0000"
4. Limiting speed (n G) "8200.0000"
5. Reference speed (n ϑr) "6100.0000"
6. ECLASS number 23-05-08-01
7. ECLASS2 number 23-05-08-01
8. Medias description Deep groove ball bearing 62, single row, cf. DIN 625-1
