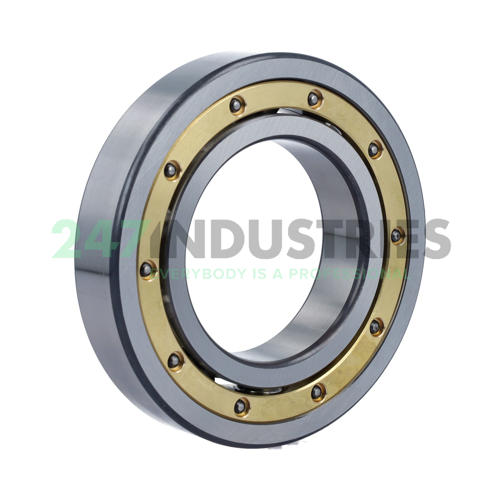

6214-MA-C3 FAG

All dimensions

1. Inner (d) MM 70,00
2. Outer (D) MM 125,00
3. Width (B) MM 24,00
4. Inner (d) Inch 2.7559
5. Outer (D) Inch 4.9213
6. Width (B) Inch 0.9449
7. Width (b) mm 24,00

Suffix description

1. MA Machined Brass Cage, Outer Ring Guided
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 0 pcs
2. Brand FAG
3. Item number 6214-MA-C3 FAG
4. Also known as 0384048930030

5. EAN 4012801277433
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 1.07

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type MA - Brass Cage, Centered on Outer Ring
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 44000
2. Radial Dynamic Load Rating Cr (N) 66000
3. Basic static load rating, radial (C 0r) "44000.0000"
4. Limiting speed (n G) "10600.0000"
5. Reference speed (n ϑr) "6100.0000"
6. ECLASS number 23-05-08-01
7. ECLASS2 number 23-05-08-01
8. Medias description Deep groove ball bearing 62..-MA, single row, cf. DIN 625-1
