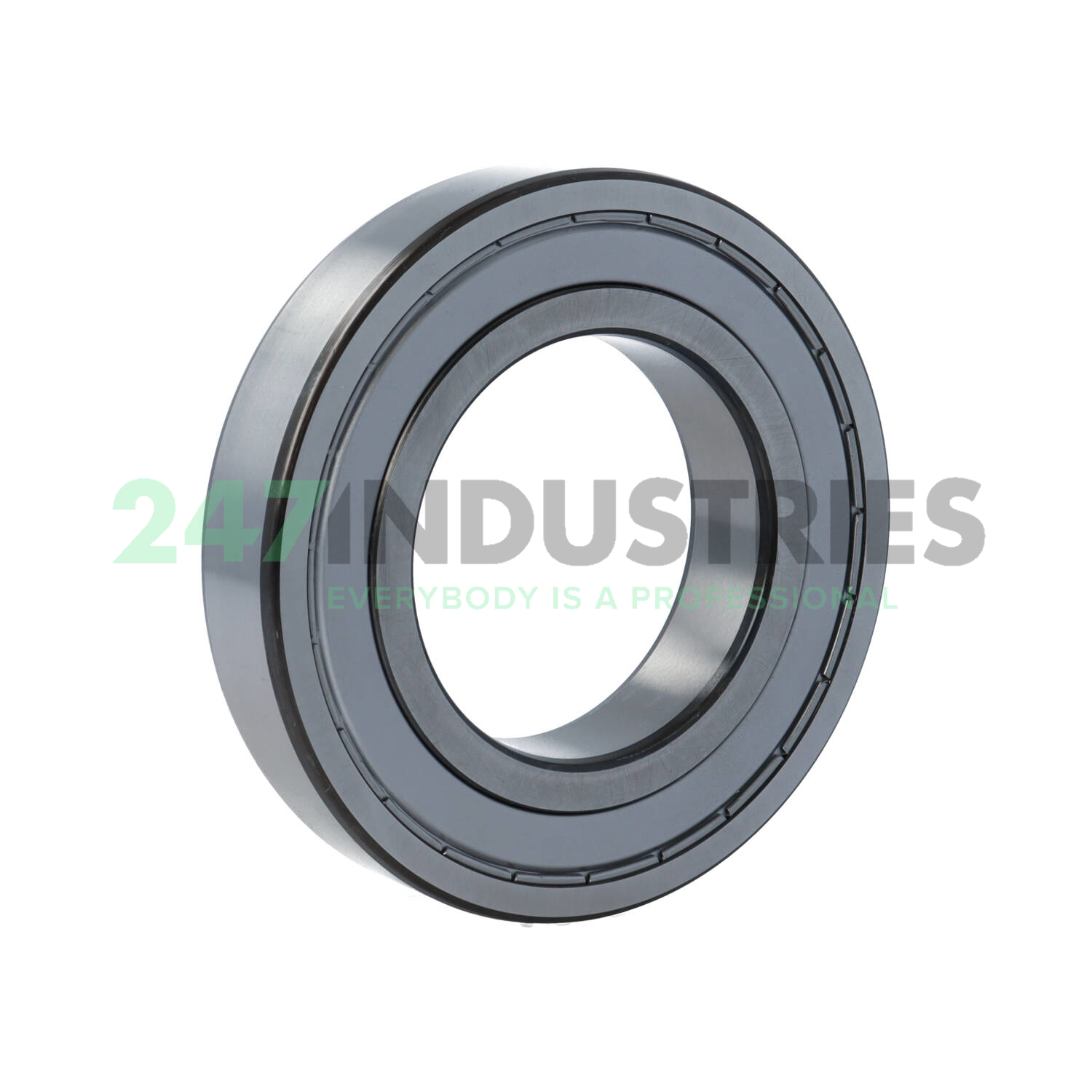

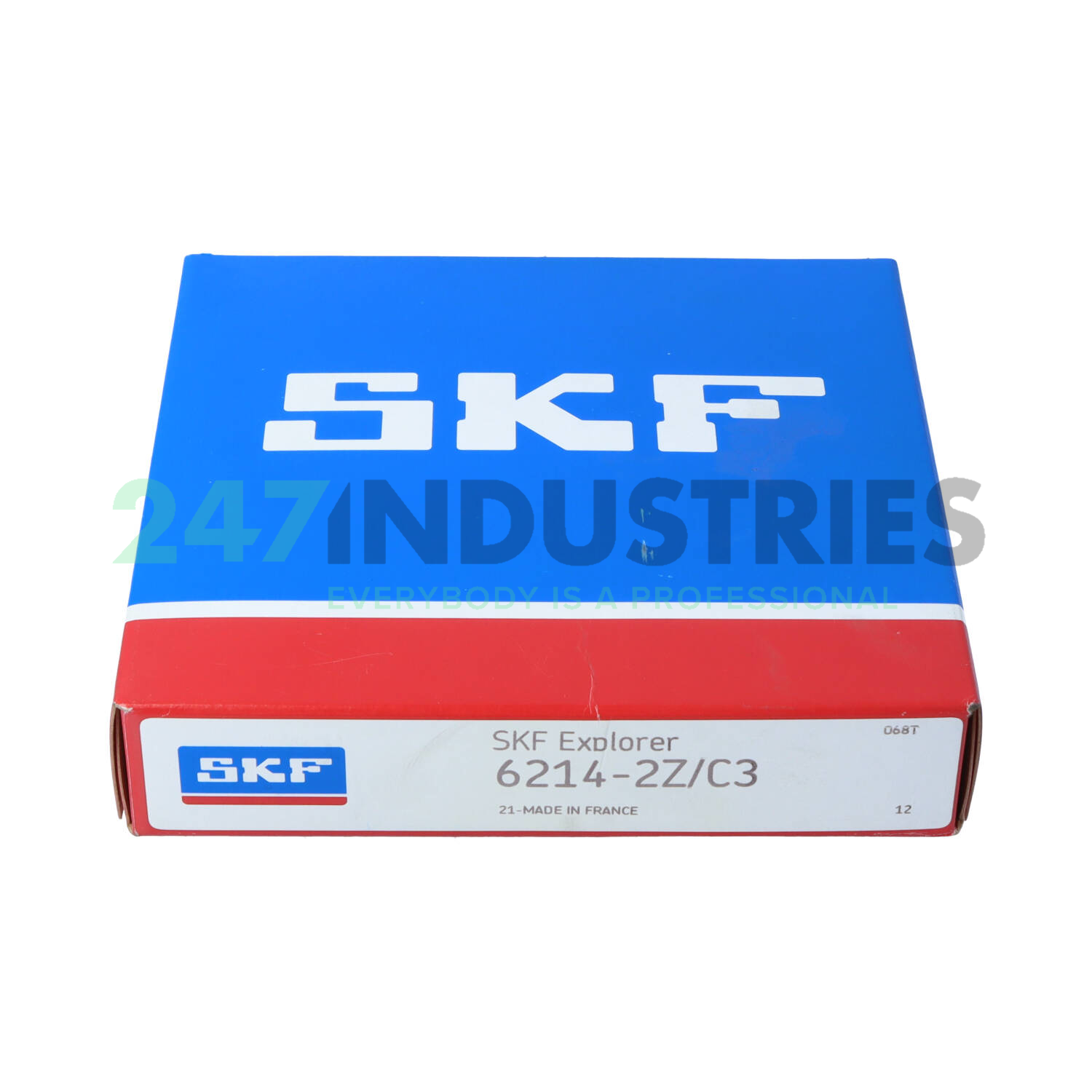

6214-2Z/C3 SKF

All dimensions

1. Inner (d) MM 70
2. Outer (D) MM 125
3. Width (B) MM 24
4. Inner (d) Inch 2.7559
5. Outer (D) Inch 4.9213
6. Width (B) Inch 0.9449

Suffix description

1. 2Z Shield Of Pressed Sheet Steel On Both Sides Of The Bearing
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 57 pcs
2. Brand SKF
3. Item number 6214-2Z/C3 SKF
4. Also known as 6214-2Z-C3
   6214ZZ C3
   6214ZZ J30

5. EAN 7316576681547
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 1.09

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
