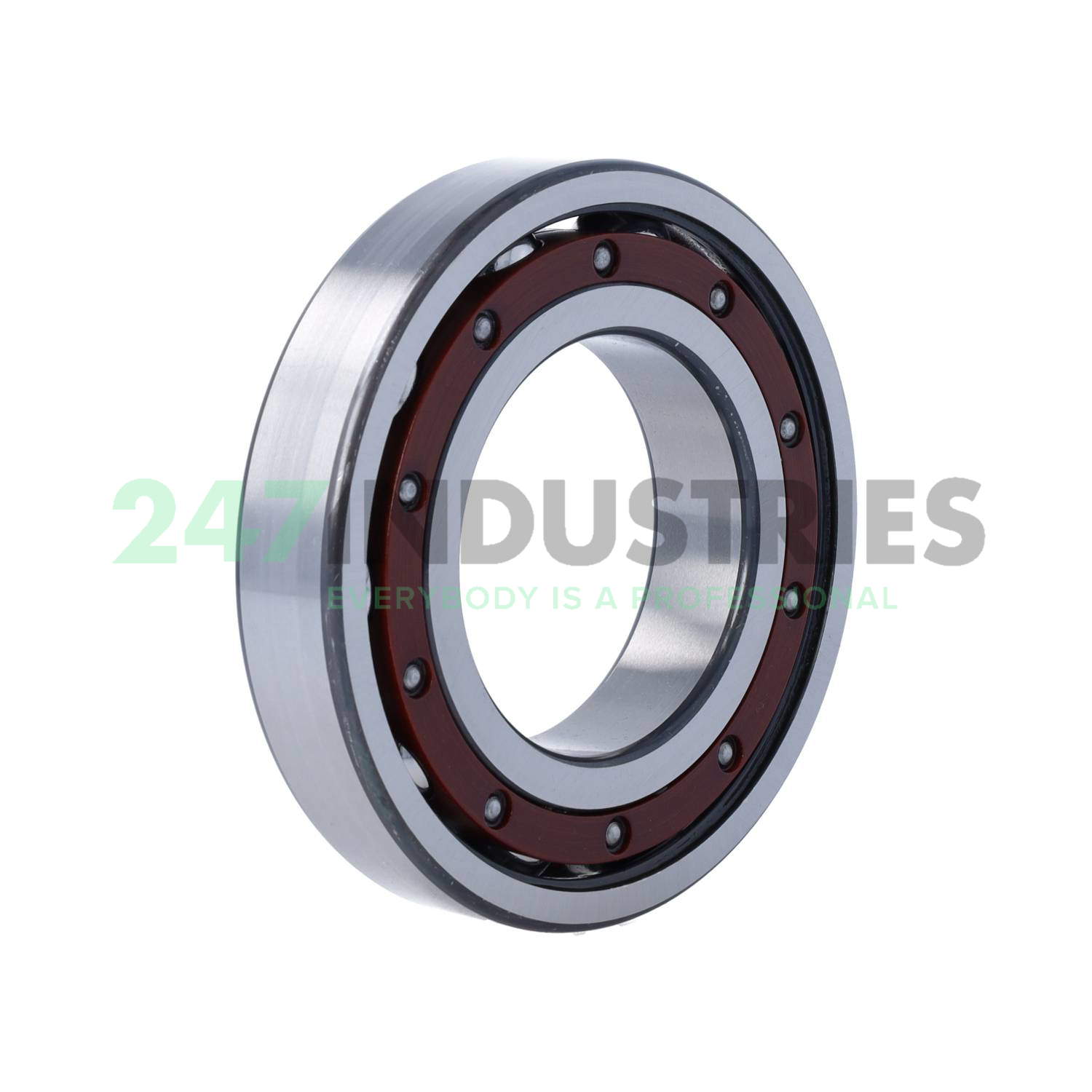

6213-TB FAG

All dimensions

1. Inner (d) MM 65,00
2. Outer (D) MM 120,00
3. Width (B) MM 23,00
4. Inner (d) Inch 2.5591
5. Outer (D) Inch 4.7244
6. Width (B) Inch 0.9055

Suffix description

1. TB Window-Type Cage Of Fabric Reinforced Phenolic Resin, Inner Ring Centered

Technical details

1. Availability 0 pcs
2. Brand FAG
3. Item number 6213-TB FAG
4. Also known as 0191047400000

5. EAN 4012801277280
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.997

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type TB - Hard Fiber Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. ECLASS number 23-05-08-01
2. ECLASS2 number 23-05-08-01

Downloads and links

1. Link to manufacturer Link to manufacturer
