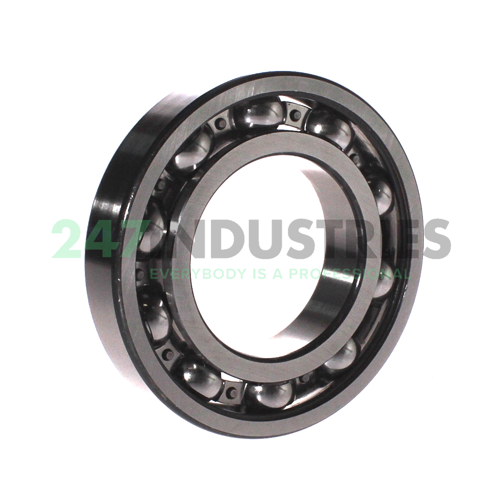

6213-P6 FAG

All dimensions

1. Inner (d) MM 65,00
2. Outer (D) MM 120,00
3. Width (B) MM 23,00
4. Inner (d) Inch 2.5591
5. Outer (D) Inch 4.7244
6. Width (B) Inch 0.9055
7. Width (b) mm 23,00

Suffix description

1. P6 Dimensional And Running Accuracy To ISO Tolerance Class 6 (Better Than Normal)

Technical details

1. Availability 0 pcs
2. Brand FAG
3. Item number 6213-P6 FAG
4. Also known as 0167211100000

5. EAN 4012801276962
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.997

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision P6 Precision (Higher than Standard)
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 41500
2. Radial Dynamic Load Rating Cr (N) 63000
3. Basic static load rating, radial (C 0r) "41500.0000"
4. Limiting speed (n G) "8600.0000"
5. Reference speed (n ϑr) "6300.0000"
6. ECLASS number 23-05-08-01
7. ECLASS2 number 23-05-08-01
8. Medias description Deep groove ball bearing 62, single row, cf. DIN 625-1
