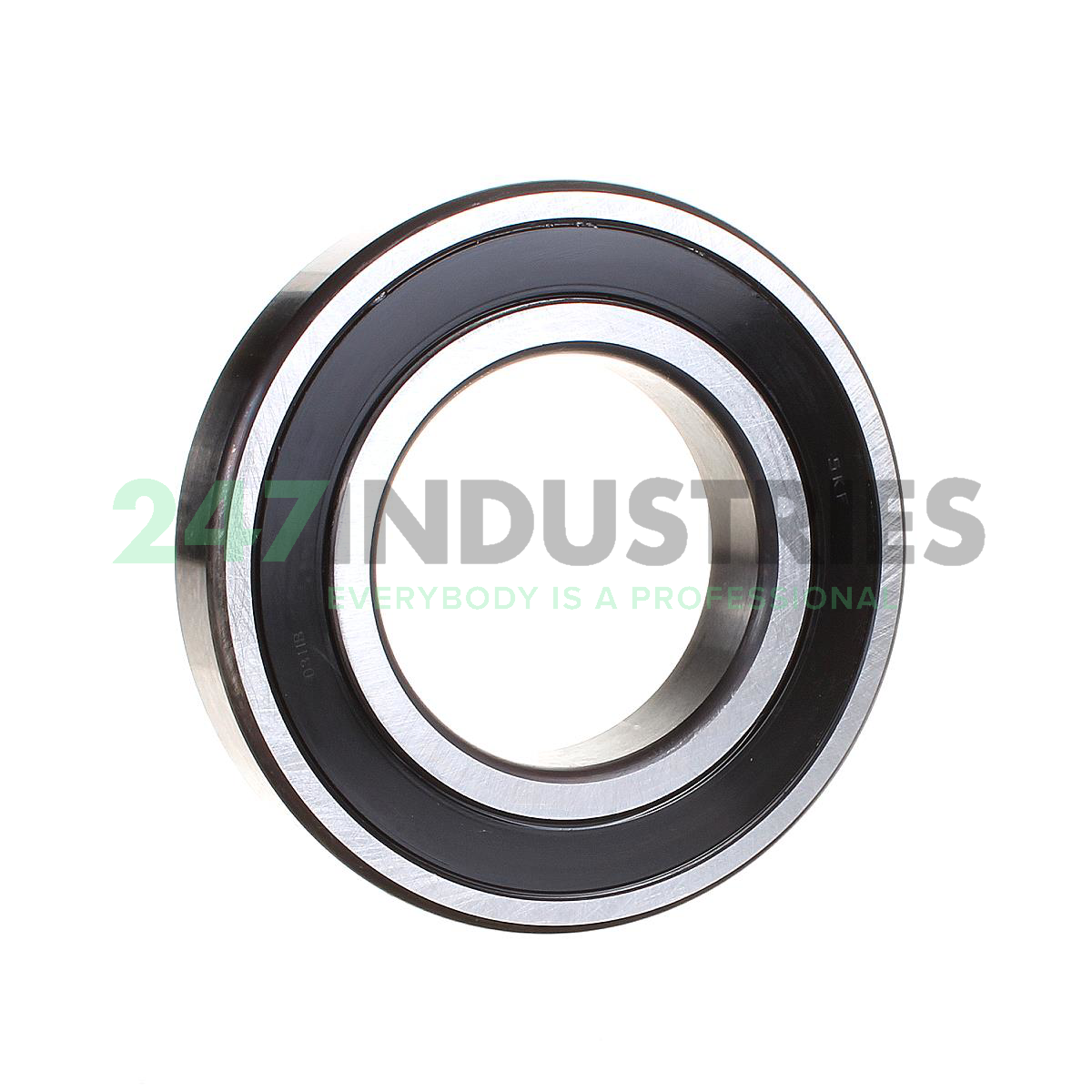

6212DDU CM AV2S NSK

All dimensions

1. Inner (d) MM 60,00
2. Outer (D) MM 110,00
3. Width (B) MM 22,00
4. Inner (d) Inch 2.3622
5. Outer (D) Inch 4.3307
6. Width (B) Inch 0.8661

Suffix description

1. DDU Rubber Seals At Each Side Of The Bearing
2. CM Ball Bearing, Special Radial Internal Clearance For Electric Motors, Can Be Used As Standard 'CN' Clearance
3. AV2S Lubricant, Shell Oil Co., Alvania #2 Grease, 1/4 Full. Temperature Range = -10°C / + 110°C (Normal Temperature Grease)
4. S Ball Bearing, Standard Grease Fill

Technical details

1. Availability 0 pcs
2. Brand NSK
3. Item number 6212DDU CM AV2S NSK
4. Also known as 6212DDU CM

5. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.791

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
