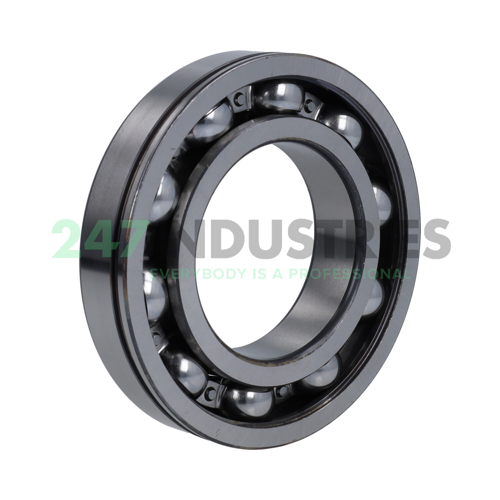

6212-Z-N FAG

All dimensions

1. Inner (d) MM 60
2. Outer (D) MM 110
3. Width (B) MM 22
4. Inner (d) Inch 2.3622
5. Outer (D) Inch 4.3307
6. Width (B) Inch 0.8661
7. Width (b) mm 22

Suffix description

1. Z Shield Of Pressed Sheet Steel On One Side Of The Bearing
2. N Snap Ring Groove In The Outer Ring

Technical details

1. Availability 3 pcs
2. Brand FAG
3. Item number 6212-Z-N FAG
4. Also known as 0191045700000

5. EAN 4012801276900
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.781

Product Properties

1. Bore C - Cylindrical Bore
2. Seal Z - Steel Seal on One Side
3. Cage Type S - Steel or Standard Cage
4. External Modification N - Snap Ring Groove in Outer Ring
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 36500
2. Limiting speed (n G) 9300
3. Reference speed (n ϑr) 6800
4. ECLASS number 23-05-08-01
5. ECLASS2 number 23-05-08-01
