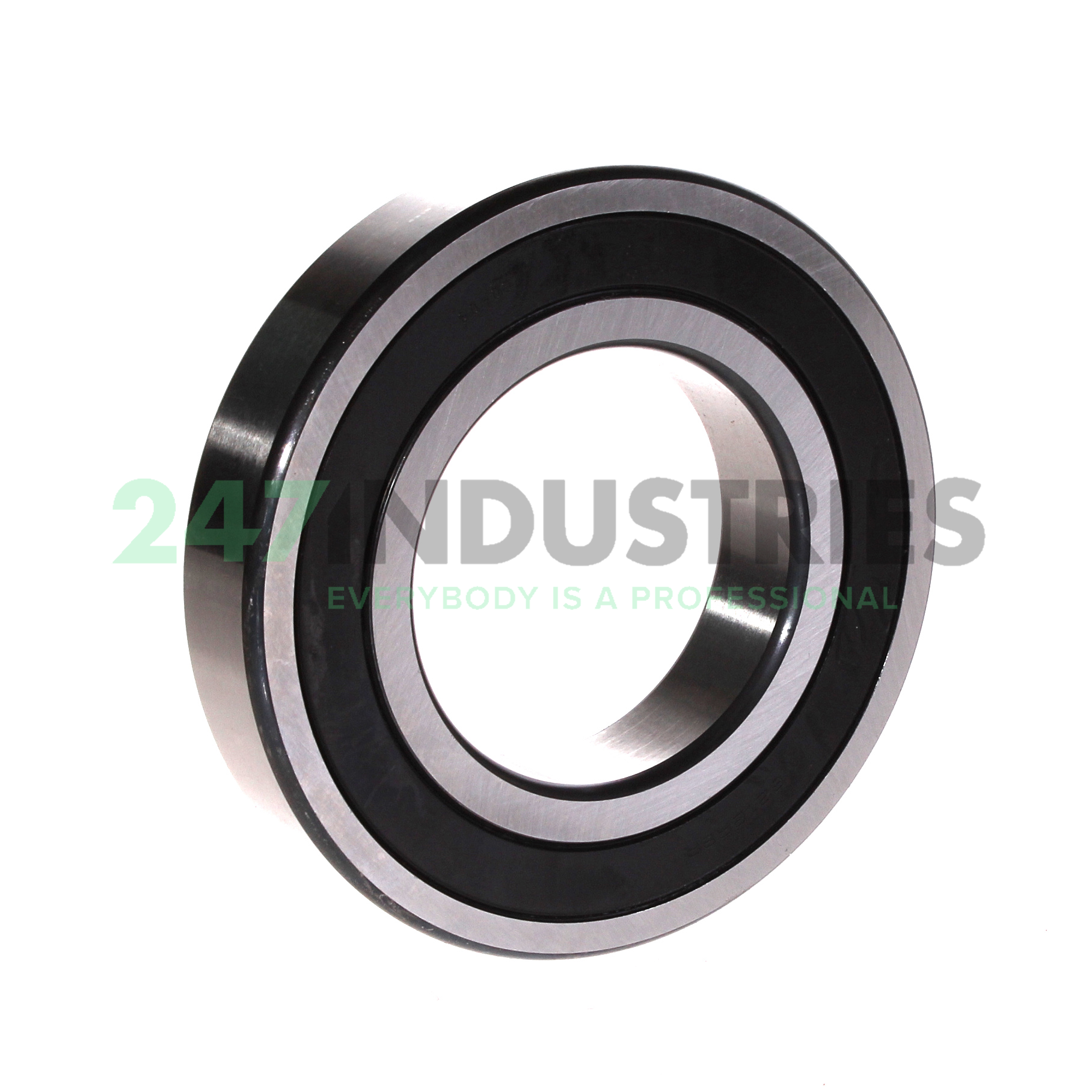

6212-RSR FAG

All dimensions

1. Inner (d) MM 60,00
2. Outer (D) MM 110,00
3. Width (B) MM 22,00
4. Inner (d) Inch 2.3622
5. Outer (D) Inch 4.3307
6. Width (B) Inch 0.8661
7. Width (b) mm 22,00

Suffix description

1. RSR One Seal, Buna-N Rubber, Radial Type

Technical details

1. Availability 1 pc
2. Brand FAG
3. Item number 6212-RSR FAG
4. Also known as 0167210040000

5. EAN 4054372722790
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.793

Product Properties

1. Bore C - Cylindrical Bore
2. Seal RS - Rubber Seal on One Side
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 36500
2. Radial Dynamic Load Rating Cr (N) 57000
3. Basic static load rating, radial (C 0r) "36500.0000"
4. Limiting speed (n G) "3550.0000"
5. ECLASS number 23-05-08-01
6. ECLASS2 number 23-05-08-01
7. Medias description Deep groove ball bearing 62..-RSR, single row, cf. DIN 625-1
