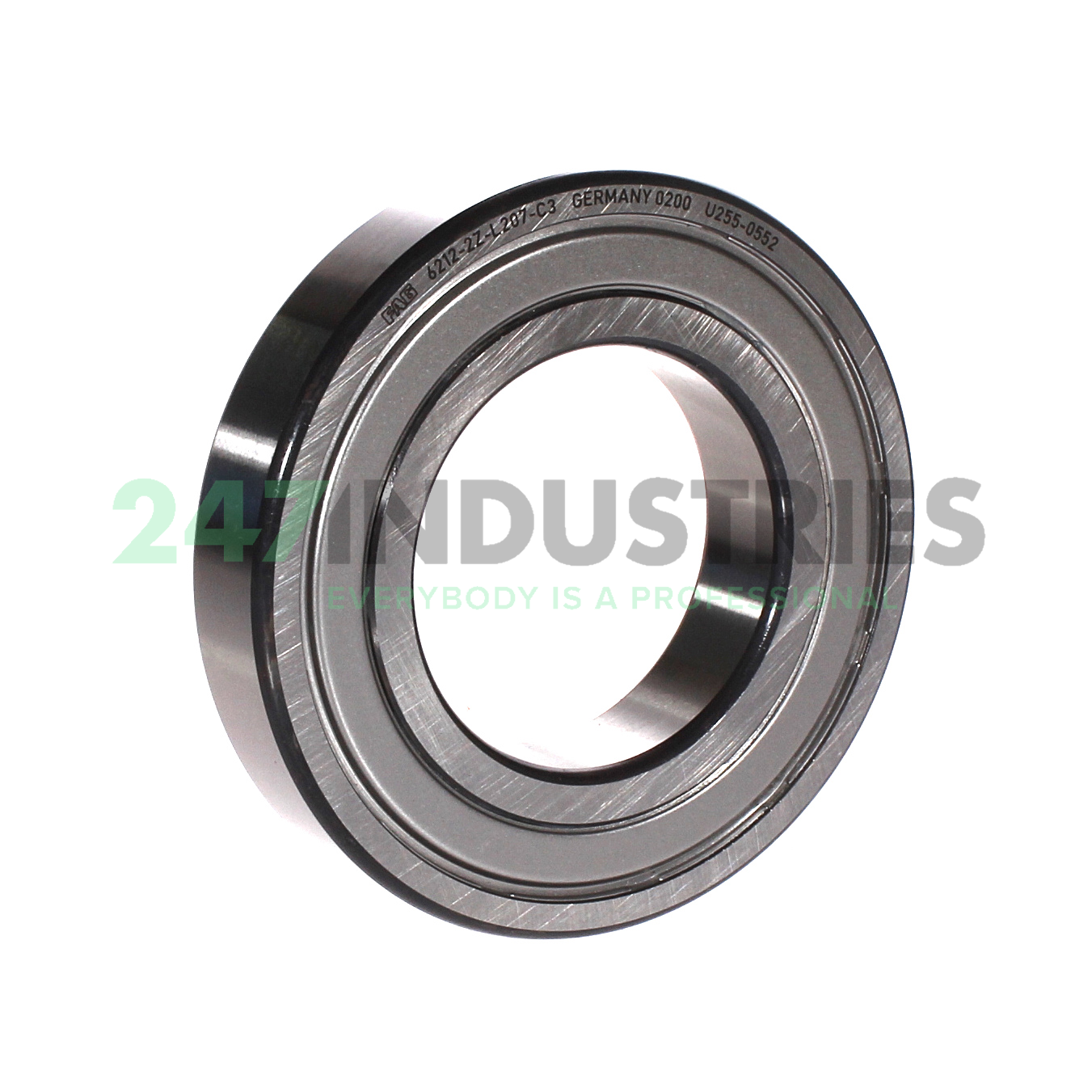

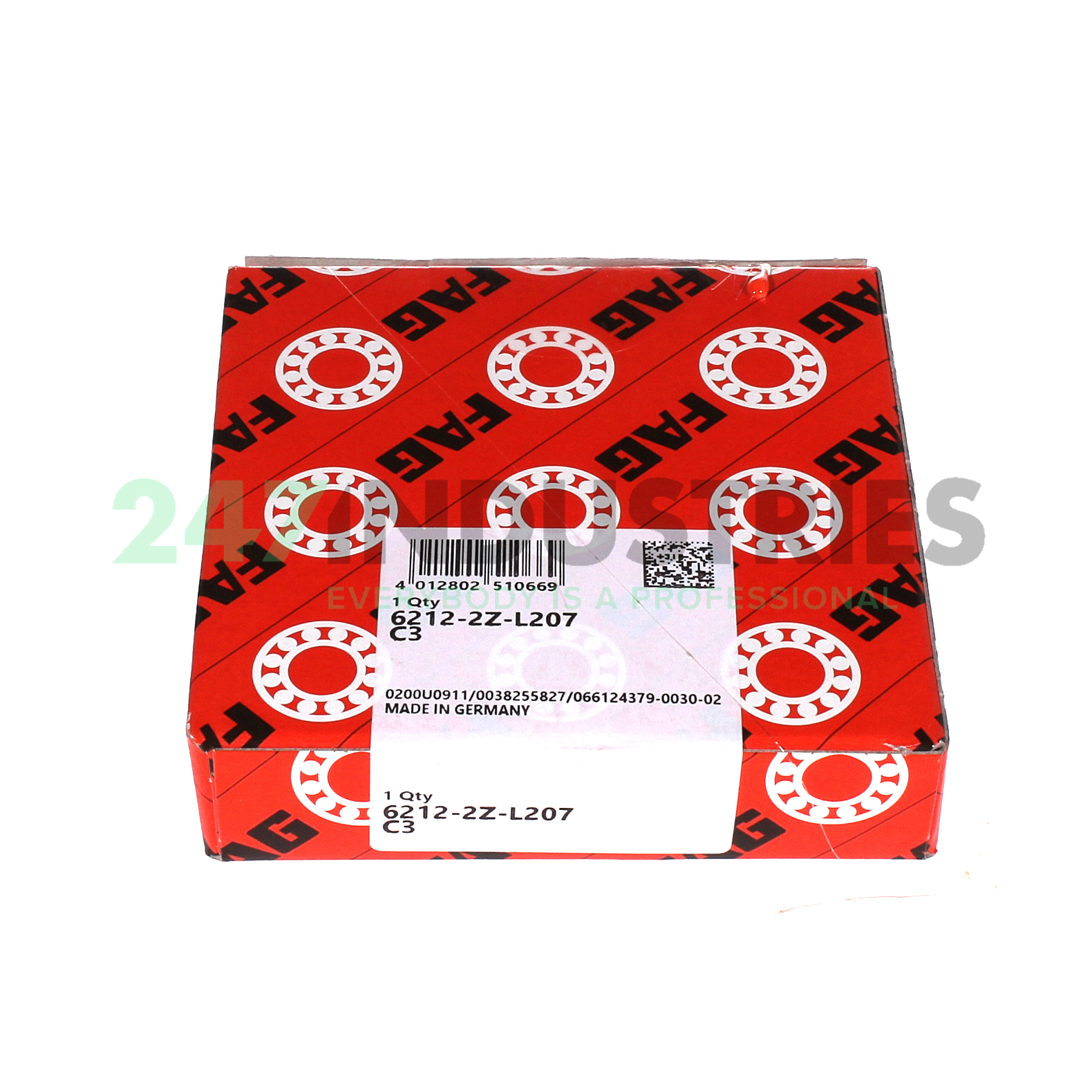

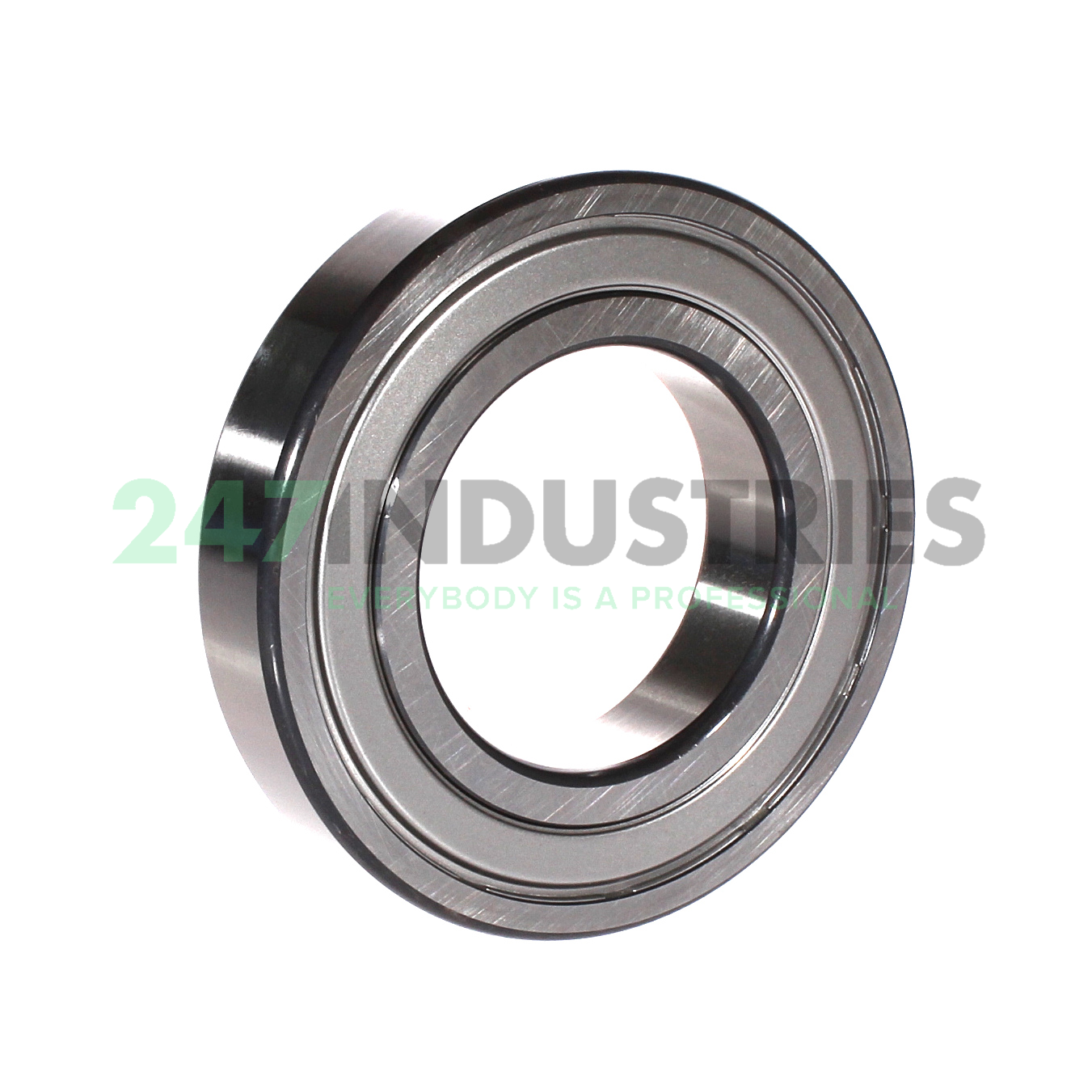

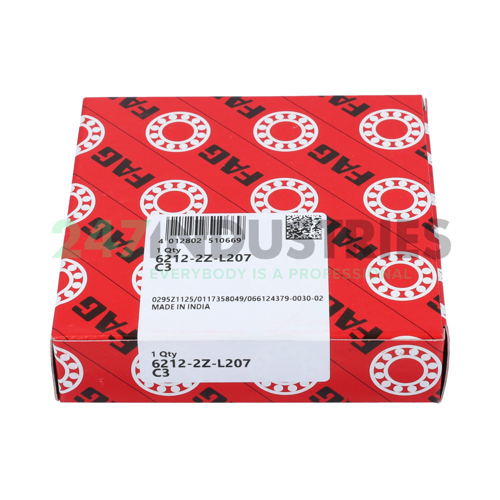

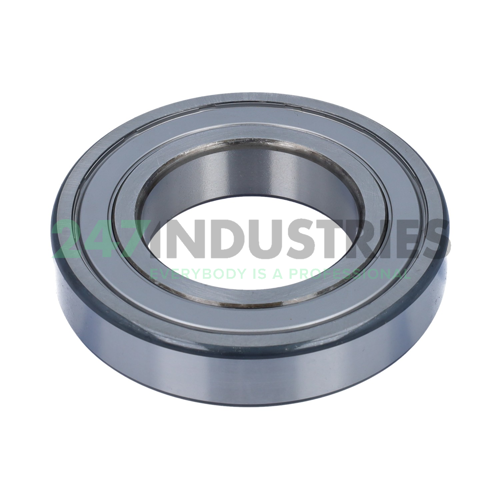

6212-2Z-L207-C3 FAG

All dimensions

1. Inner (d) MM 60,00
2. Outer (D) MM 110,00
3. Width (B) MM 22,00
4. Inner (d) Inch 2.3622
5. Outer (D) Inch 4.3307
6. Width (B) Inch 0.8661
7. Width (b) mm 22,00

Suffix description

1. 2Z Non-Contact Sealing Shield On Both Sides (Sheet Metal Gap Seal)
2. L207 Grease Filling With Arcanol L207 (High Temperature Grease)
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 13 pcs
2. Brand FAG
3. Item number 6212-2Z-L207-C3 FAG
4. Also known as 0661243790030
   6212-2Z/C3
   6212-2Z-C3

5. EAN 4012802510669
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.803

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication 2 - High Temperature Grease
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 36500
2. Radial Dynamic Load Rating Cr (N) 57000
3. Basic static load rating, radial (C 0r) "36500.0000"
4. Limiting speed (n G) "7900.0000"
5. Reference speed (n ϑr) "6800.0000"
6. ECLASS number 23-05-08-01
7. ECLASS2 number 23-05-08-01
8. Medias description Deep groove ball bearing 62..-2Z, single row, cf. DIN 625-1

Downloads and links

1. Link to manufacturer Link to manufacturer
