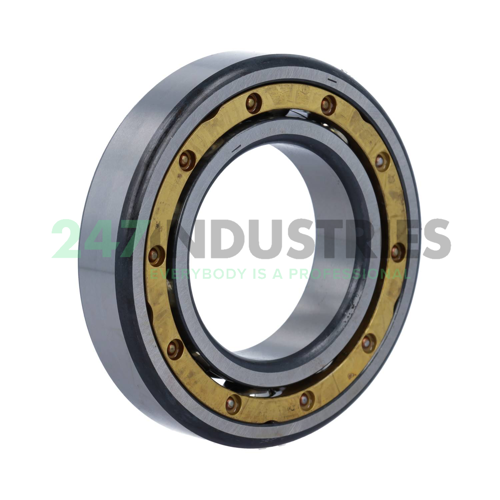

6211MAS.P54.S1 FAG

All dimensions

1. Inner (d) MM 55,00
2. Outer (D) MM 100,00
3. Width (B) MM 21,00
4. Inner (d) Inch 2.1654
5. Outer (D) Inch 3.9370
6. Width (B) Inch 0.8268

Suffix description

1. MA Machined Brass Cage, Outer Ring Guided
2. S Lubrication Groove And Three Holes In Bearing Outer Ring
3. P54 Combination of P5 (Dimensional And Running Accuracy To ISO Tolerance Class 5) And C4 (Bearing Internal Clearance Greater Than C3)
4. S1 Bearing Rings Or Washers Dimensionally Stabilized For Use At Operating Temperatures Up To +200°C (392°F)

Technical details

1. Availability 22 pcs
2. Brand FAG
3. Item number 6211MAS.P54.S1 FAG
4. Also known as 6211MAS.P54

5. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.74

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type MA - Brass Cage, Centered on Outer Ring
4. External Modification No External Modification
5. Radial Internal Play C4 Internal Play (Higher than C3)
6. Precision P5 Precision (Higher than P6)
7. Lubrication Standard Lubrication
8. Heat Stabilization S1 - Temperatures up to 200 °C
9. Special Treatment No Special Treatment
