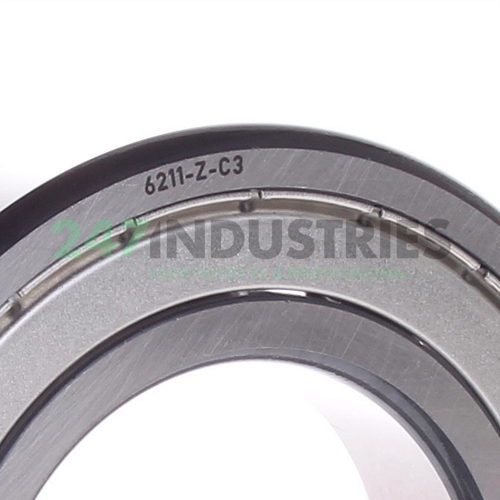

6211-Z-C3 FAG

All dimensions

1. Inner (d) MM 55,00
2. Outer (D) MM 100,00
3. Width (B) MM 21,00
4. Inner (d) Inch 2.1654
5. Outer (D) Inch 3.9370
6. Width (B) Inch 0.8268

Suffix description

1. Z Shield Of Pressed Sheet Steel On One Side Of The Bearing
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 0 pcs
2. Brand FAG
3. Item number 6211-Z-C3 FAG
4. Also known as 6211-C-Z-C3

5. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.595

Product Properties

1. Bore C - Cylindrical Bore
2. Seal Z - Steel Seal on One Side
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
