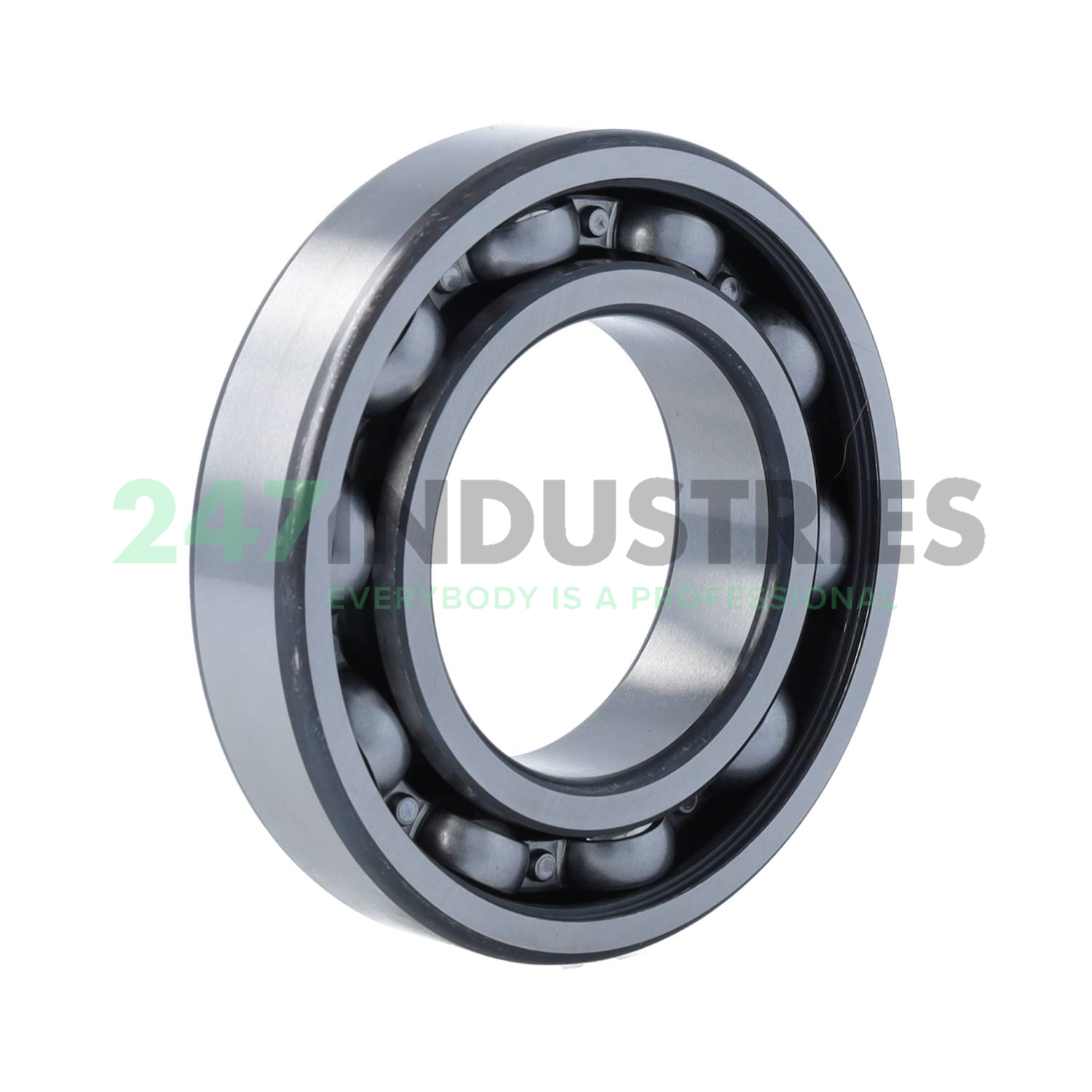

6211-RSR FAG

All dimensions

1. Inner (d) MM 55
2. Outer (D) MM 100
3. Width (B) MM 21
4. Inner (d) Inch 2.1654
5. Outer (D) Inch 3.937
6. Width (B) Inch 0.8268
7. Width (b) mm 21

Suffix description

1. RSR One Seal, Buna-N Rubber, Radial Type

Technical details

1. Availability 31 pcs
2. Brand FAG
3. Item number 6211-RSR FAG
4. Also known as 0167208900000

5. EAN 4054371432942
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.5989

Product Properties

1. Bore C - Cylindrical Bore
2. Seal RS - Rubber Seal on One Side
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 29000
2. Limiting speed (n G) 3900

Downloads and links

1. Link to manufacturer Link to manufacturer
