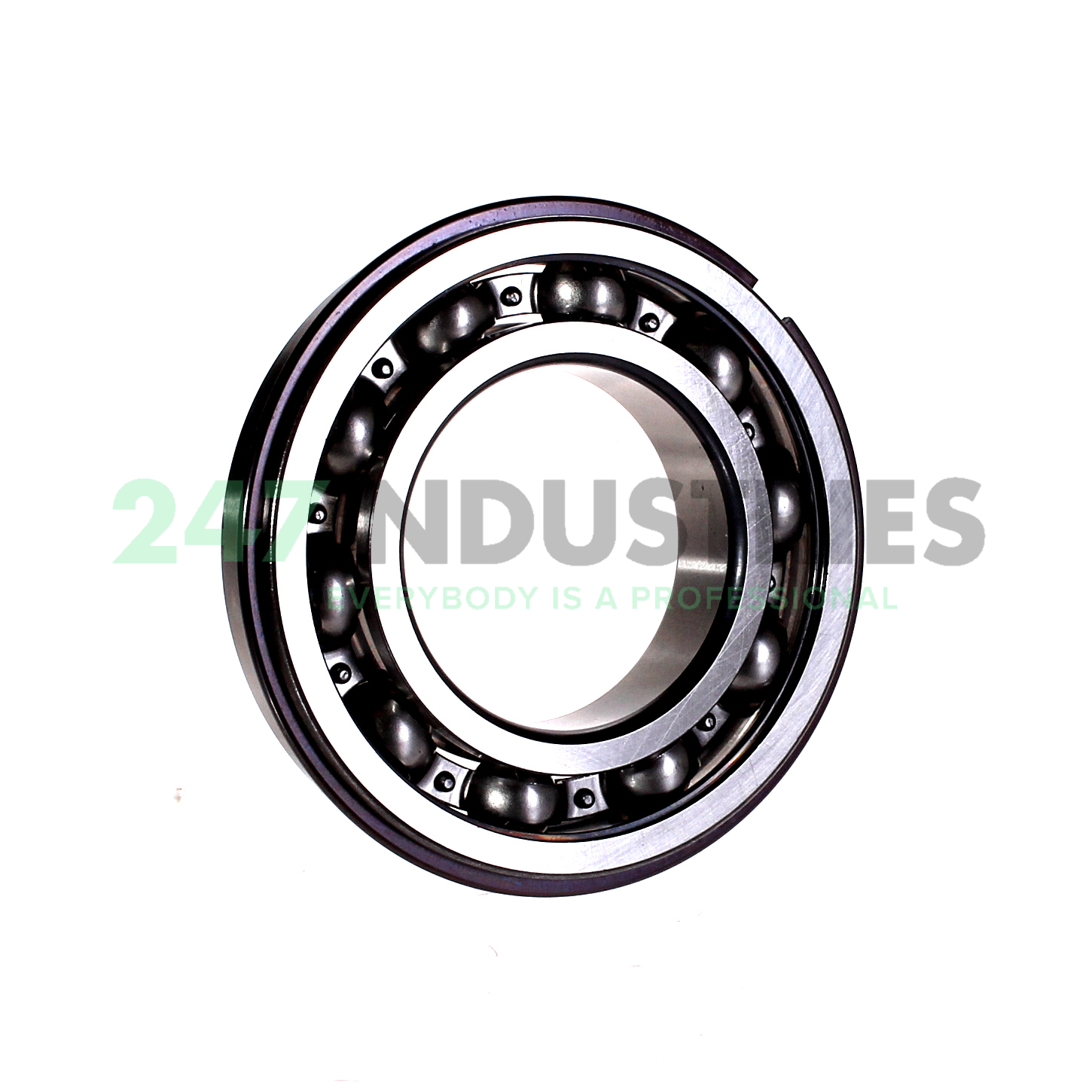

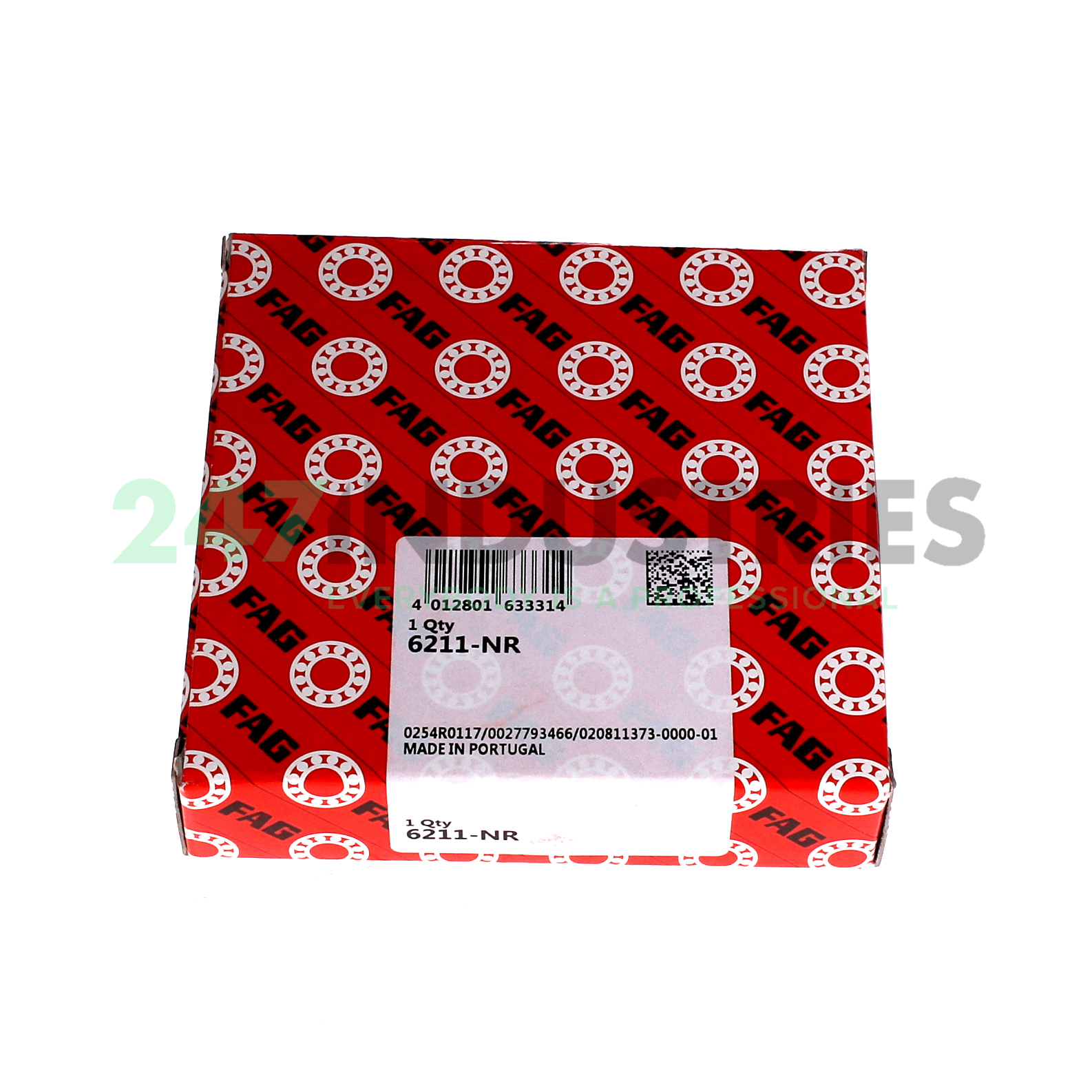

6211-NR FAG

All dimensions

1. Inner (d) MM 55
2. Outer (D) MM 100
3. Width (B) MM 21
4. Inner (d) Inch 2.1654
5. Outer (D) Inch 3.937
6. Width (B) Inch 0.8268
7. Width (b) mm 21

Suffix description

1. NR Snap Ring Groove In Bearing Outer Ring And Appropriate Snap Ring

Technical details

1. Availability 9 pcs
2. Brand FAG
3. Item number 6211-NR FAG
4. Also known as 0208113730000

5. EAN 4012801633314
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.597

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification NR - Groove and Snap Ring
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 29000
2. Limiting speed (n G) 9500
3. Reference speed (n ϑr) 7500
4. ECLASS number 23-05-08-01
5. ECLASS2 number 23-05-08-01

Downloads and links

1. Link to manufacturer Link to manufacturer
