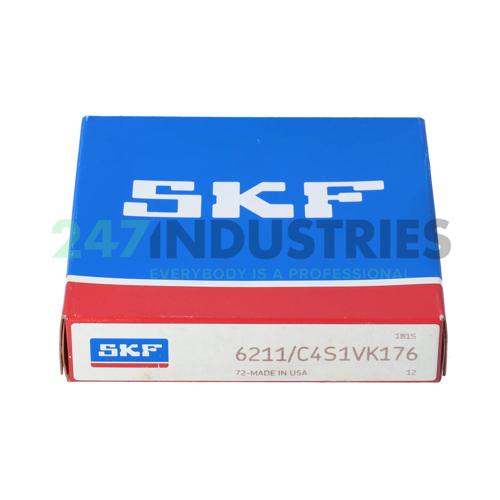

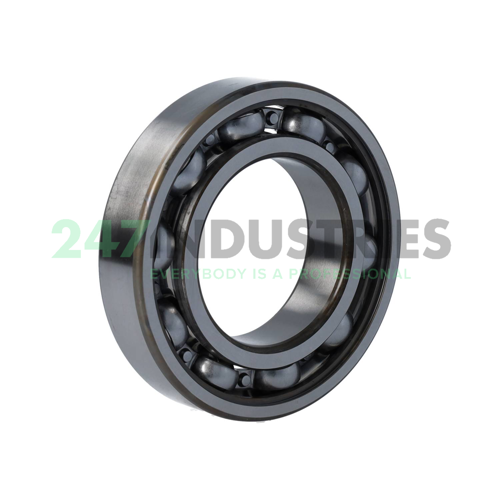

6211/C4S1VK176 SKF

All dimensions

1. Inner (d) MM 55
2. Outer (D) MM 100
3. Width (B) MM 21
4. Inner (d) Inch 2.1654
5. Outer (D) Inch 3.937
6. Width (B) Inch 0.8268

Suffix description

1. C4 Bearing Internal Clearance Greater Than C3
2. S1 Bearing Rings Or Washers Dimensionally Stabilized For Use At Operating Temperatures Up To +200°C (392°F)
3. VK176 V Combined With A Second Letter, Identifies A Variant Group, And Followed By A Three- Or Four-Figure Number Denotes Variants Not Covered By "Standard" Designation Suffixes

Technical details

1. Availability 12 pcs
2. Brand SKF
3. Item number 6211/C4S1VK176 SKF
4. Also known as 6211/C4VK176

5. EAN 7316572262559
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.595

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C4 Internal Play (Higher than C3)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization S1 - Temperatures up to 200 °C
9. Special Treatment No Special Treatment
