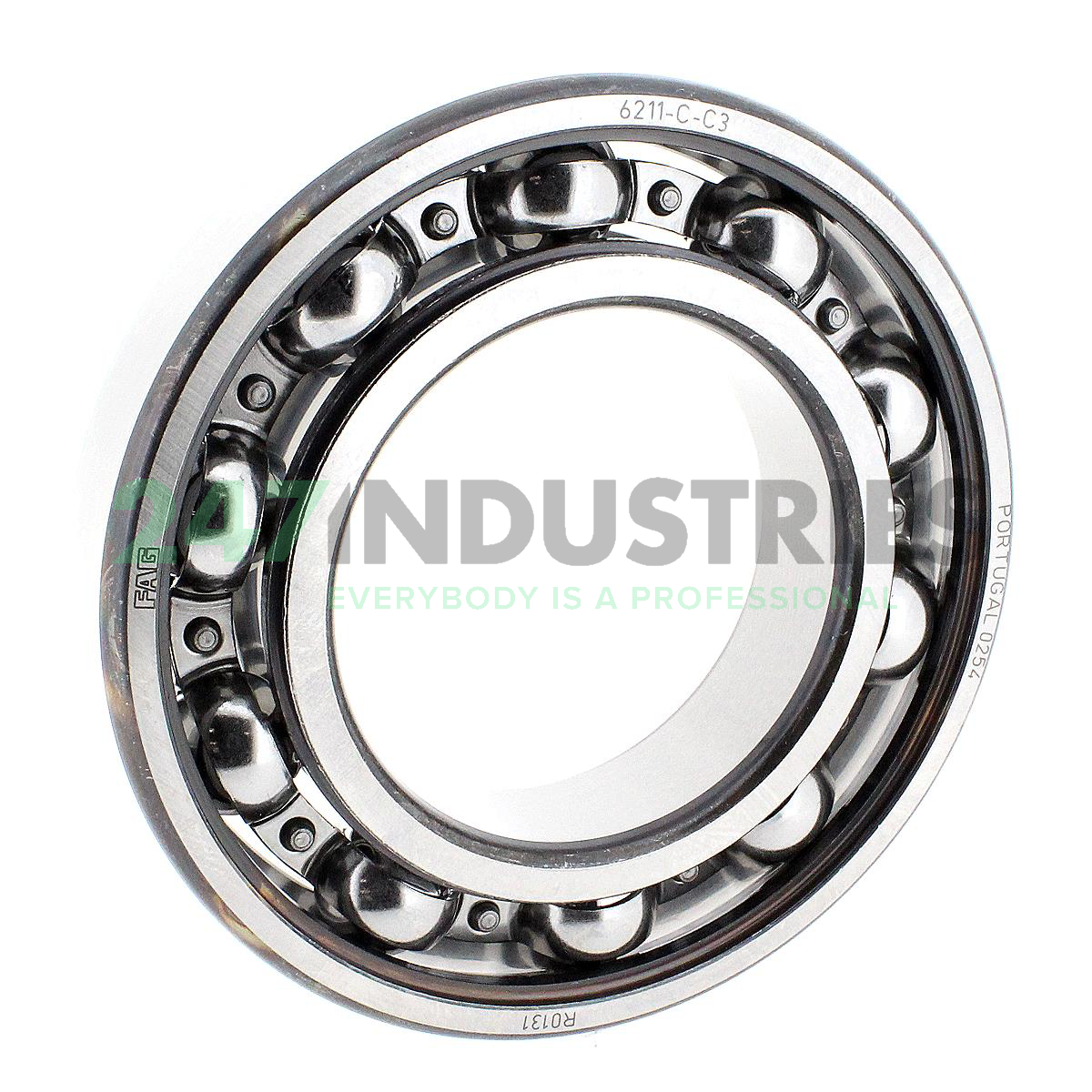

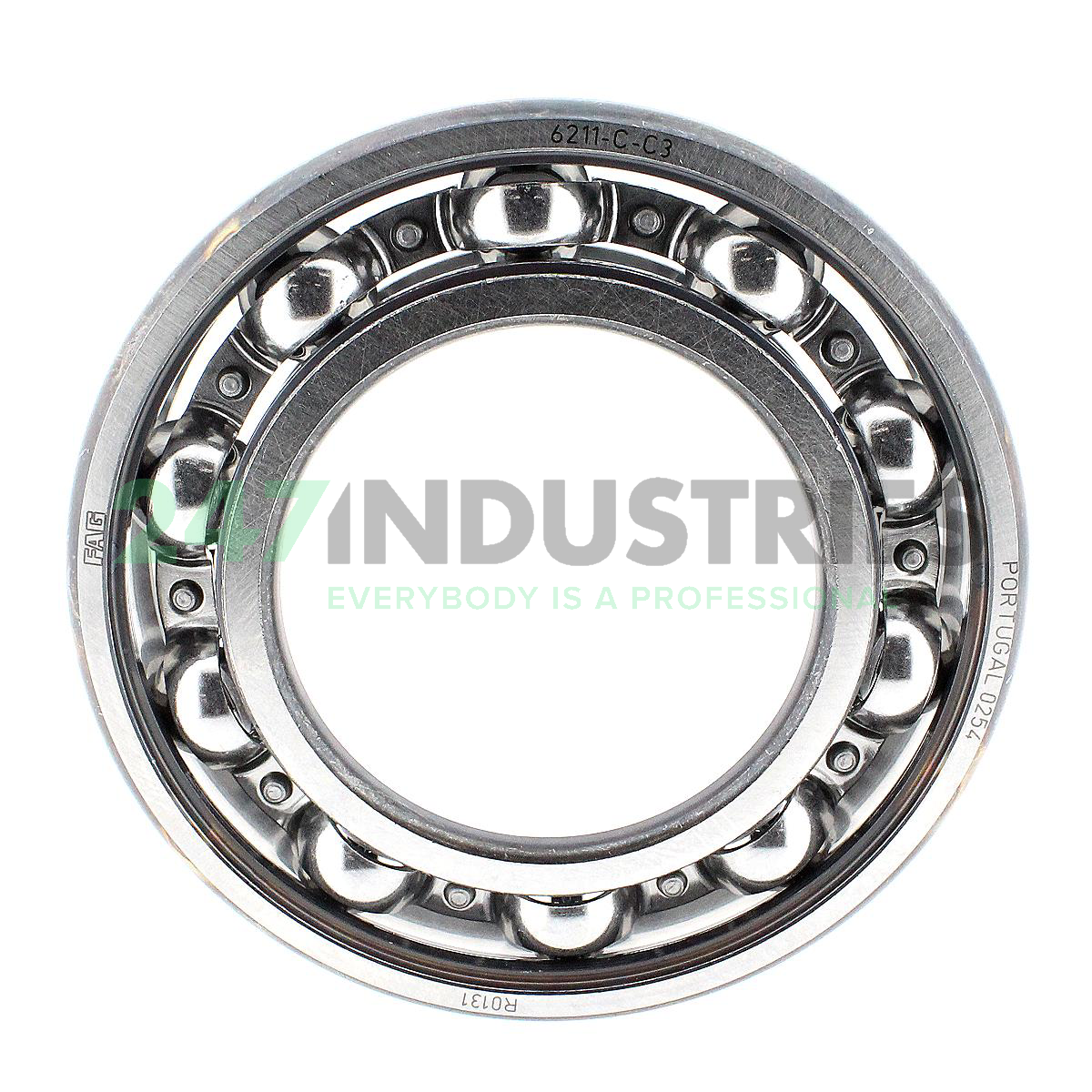

6211-C-C3 FAG

All dimensions

1. Inner (d) MM 55,00
2. Outer (D) MM 100,00
3. Width (B) MM 21,00
4. Inner (d) Inch 2.1654
5. Outer (D) Inch 3.9370
6. Width (B) Inch 0.8268
7. Width (b) mm 21,00

Suffix description

1. C Deep Groove Ball Bearings Of Generation C, Modified Internal Construction
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 130 pcs
2. Brand FAG
3. Item number 6211-C-C3 FAG
4. Also known as 0870869640030
   6211/C3
   6211-C3

5. EAN 4054369502114
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.595

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 29000
2. Radial Dynamic Load Rating Cr (N) 46500
3. Basic static load rating, radial (C 0r) "29000.0000"
4. Limiting speed (n G) "10400.0000"
5. Reference speed (n ϑr) "8300.0000"
6. ECLASS number 23-05-08-01
7. ECLASS2 number 23-05-08-01
8. Medias description Deep groove ball bearing 62..-C, single row, cf. DIN 625-1
