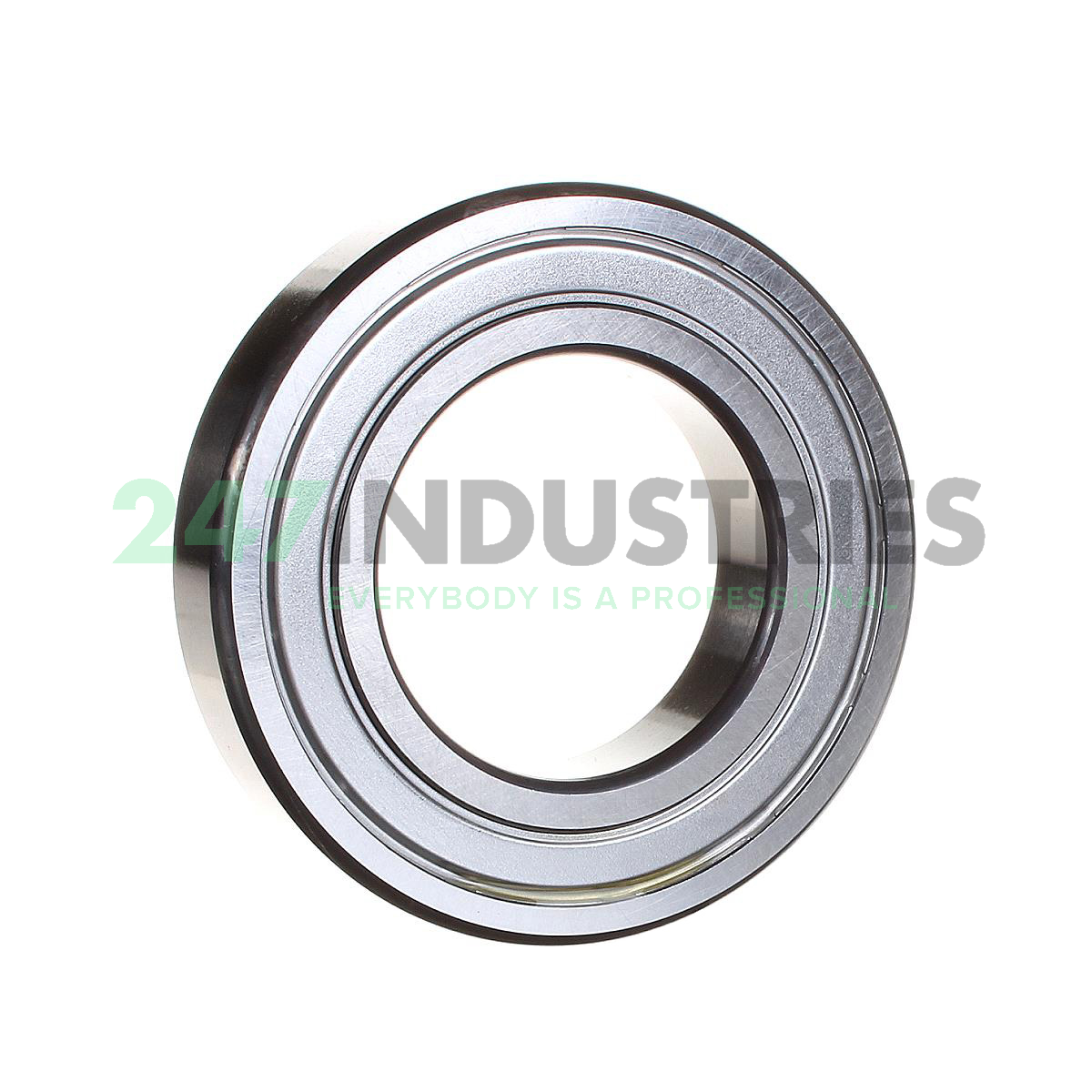

6211.2ZR.C3.L12 FAG

All dimensions

1. Inner (d) MM 55,00
2. Outer (D) MM 100,00
3. Width (B) MM 21,00
4. Inner (d) Inch 2.1654
5. Outer (D) Inch 3.9370
6. Width (B) Inch 0.8268

Suffix description

1. 2Z Non-Contact Sealing Shield On Both Sides (Sheet Metal Gap Seal)
2. C3 Internal Clearance Larger Than Normal
3. L12 Rolling Bearing Grease (Polyurea) High Temperature -30°C/+175°C

Technical details

1. Availability 0 pcs
2. Brand FAG
3. Item number 6211.2ZR.C3.L12 FAG
4. Also known as 6211-2Z/C3GJN
   6211-2Z/C3HT

5. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.617

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication 2 - High Temperature Grease
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
