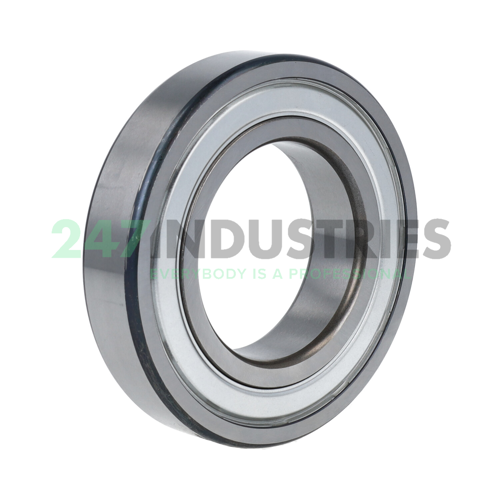

6211-2Z-L038-C3 FAG

All dimensions

1. Inner (d) MM 55
2. Outer (D) MM 100
3. Width (B) MM 21
4. Inner (d) Inch 2.1654
5. Outer (D) Inch 3.937
6. Width (B) Inch 0.8268
7. Width (b) mm 21

Suffix description

1. 2Z Non-Contact Sealing Shield On Both Sides (Sheet Metal Gap Seal)
2. L038 Arcanol Grease Medium Temperature -25ºC/+130ºC
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 10 pcs
2. Brand FAG
3. Item number 6211-2Z-L038-C3 FAG
4. Also known as 0388972450030
   6211-B-2Z-L038-C3

5. EAN 4012802651201
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.617

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Higher and Lower Temperature Grease
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 29000
2. Limiting speed (n G) 8000
3. Reference speed (n ϑr) 7500

Downloads and links

1. Link to manufacturer Link to manufacturer
