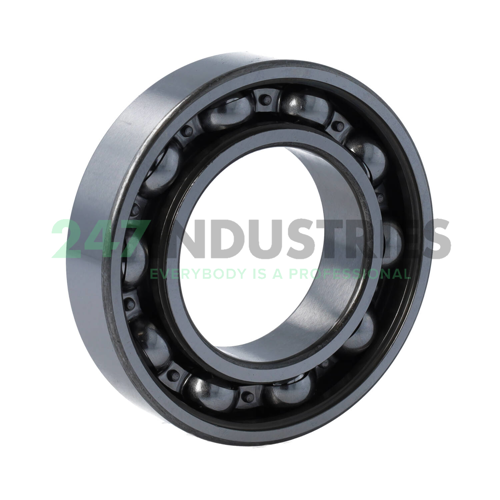

6210-C-Z-C4 FAG

All dimensions

1. Inner (d) MM 50
2. Outer (D) MM 90
3. Width (B) MM 20
4. Inner (d) Inch 1.9685
5. Outer (D) Inch 3.5433
6. Width (B) Inch 0.7874
7. Width (b) mm 20

Suffix description

1. C Internal Design Modification
2. Z Shield Of Pressed Sheet Steel On One Side Of The Bearing
3. C4 Bearing Internal Clearance Greater Than C3

Technical details

1. Availability 20 pcs
2. Brand FAG
3. Item number 6210-C-Z-C4 FAG
4. Also known as 0870230160040
   3014163030040

5. EAN 4064327185969
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.466

Product Properties

1. Bore C - Cylindrical Bore
2. Seal Z - Steel Seal on One Side
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C4 Internal Play (Higher than C3)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 23200
2. Limiting speed (n G) 11700
3. Reference speed (n ϑr) 9200
