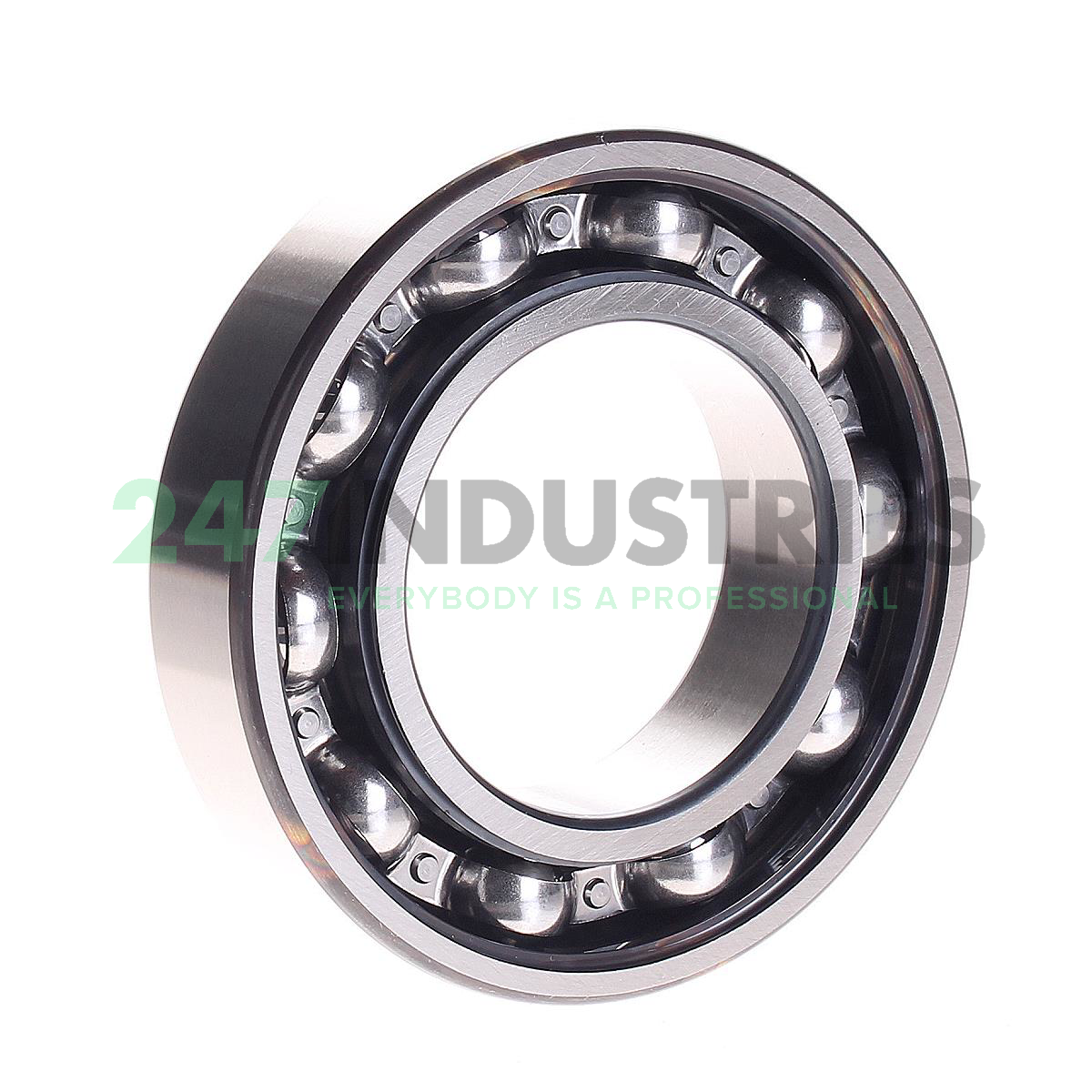

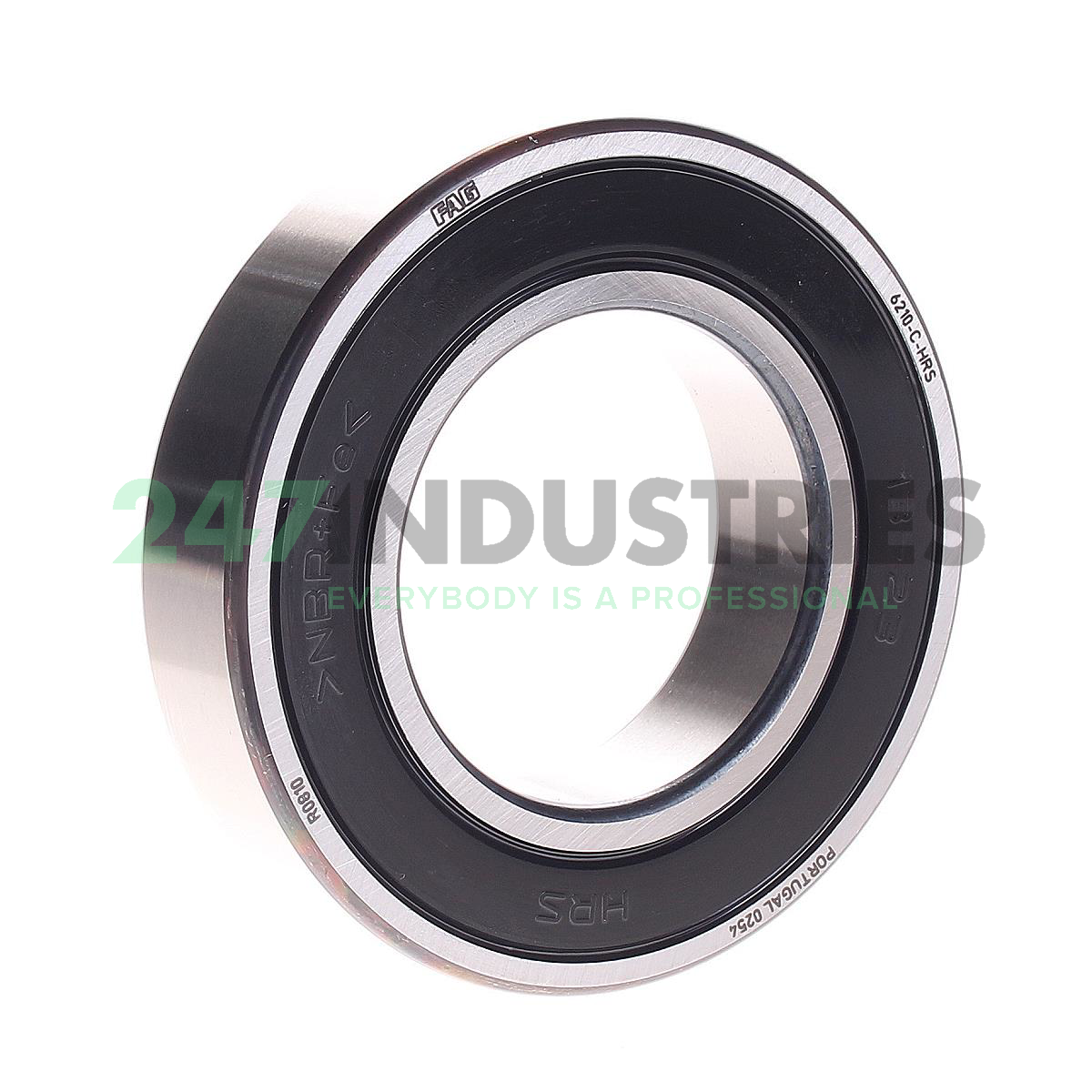

6210-C-HRS FAG

All dimensions

1. Inner (d) MM 50
2. Outer (D) MM 90
3. Width (B) MM 20
4. Inner (d) Inch 1.9685
5. Outer (D) Inch 3.5433
6. Width (B) Inch 0.7874
7. Width (b) mm 20

Suffix description

1. C Deep Groove Ball Bearings Of Generation C, Modified Internal Construction
2. HRS High Speed/Low Friction Seal

Technical details

1. Availability 114 pcs
2. Brand FAG
3. Item number 6210-C-HRS FAG
4. Also known as 0893033000000
   3014152500000
   6210-HRS

5. EAN 4054369536997
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.466

Product Properties

1. Bore C - Cylindrical Bore
2. Seal RH - High Speed Low Friction Seal on One Side
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 23200
2. Limiting speed (n G) 6500
3. ECLASS number 23-05-08-01
4. ECLASS2 number 23-05-08-01
