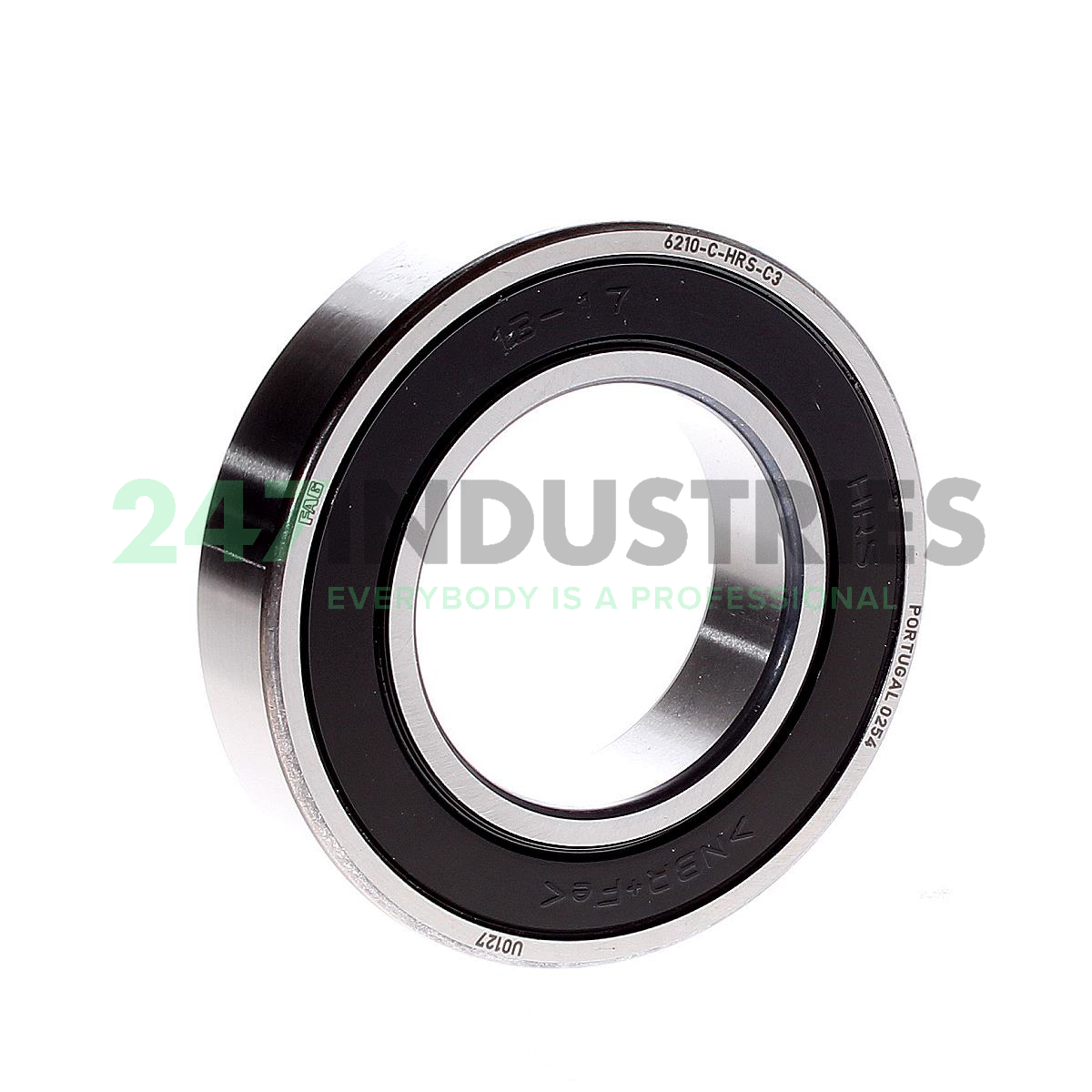

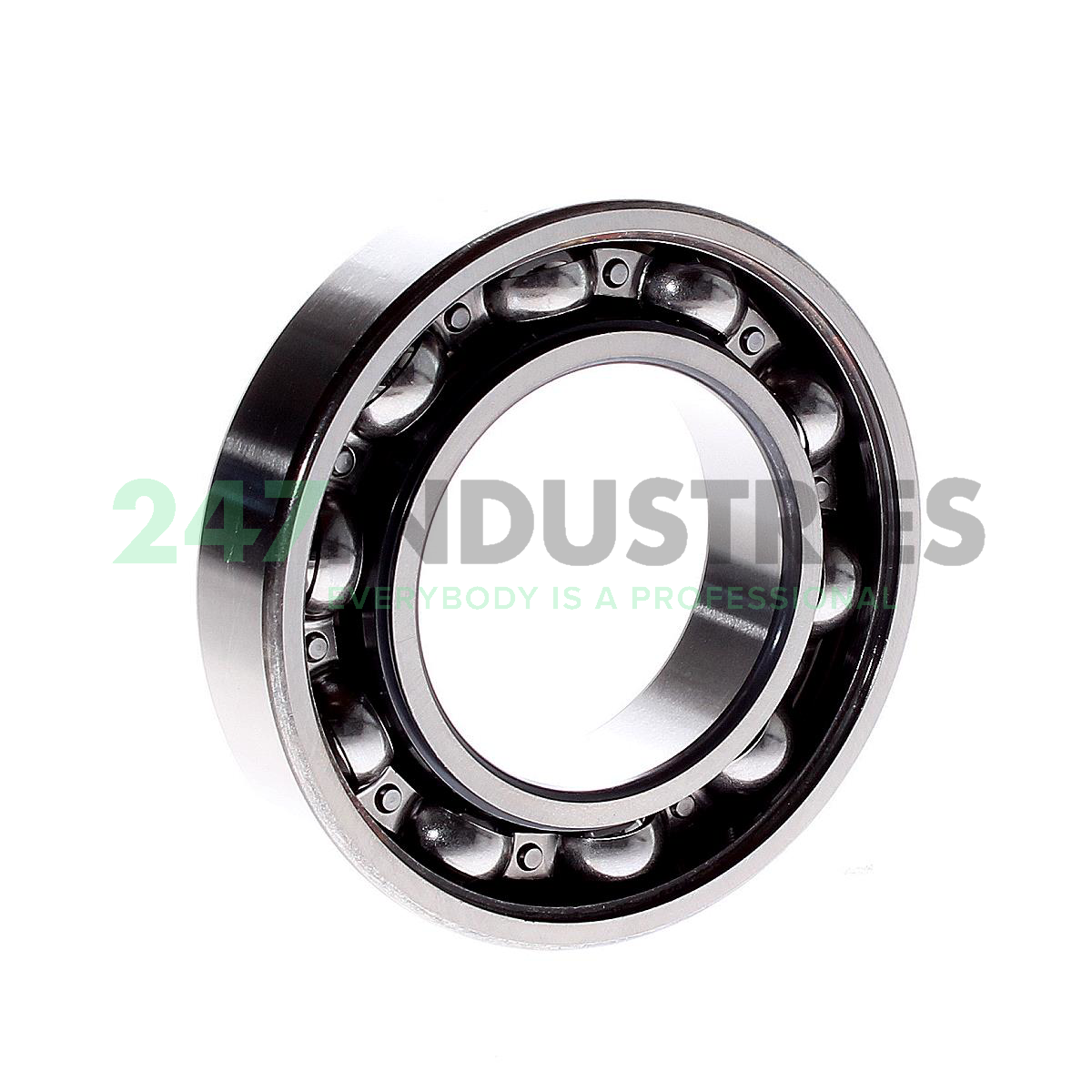

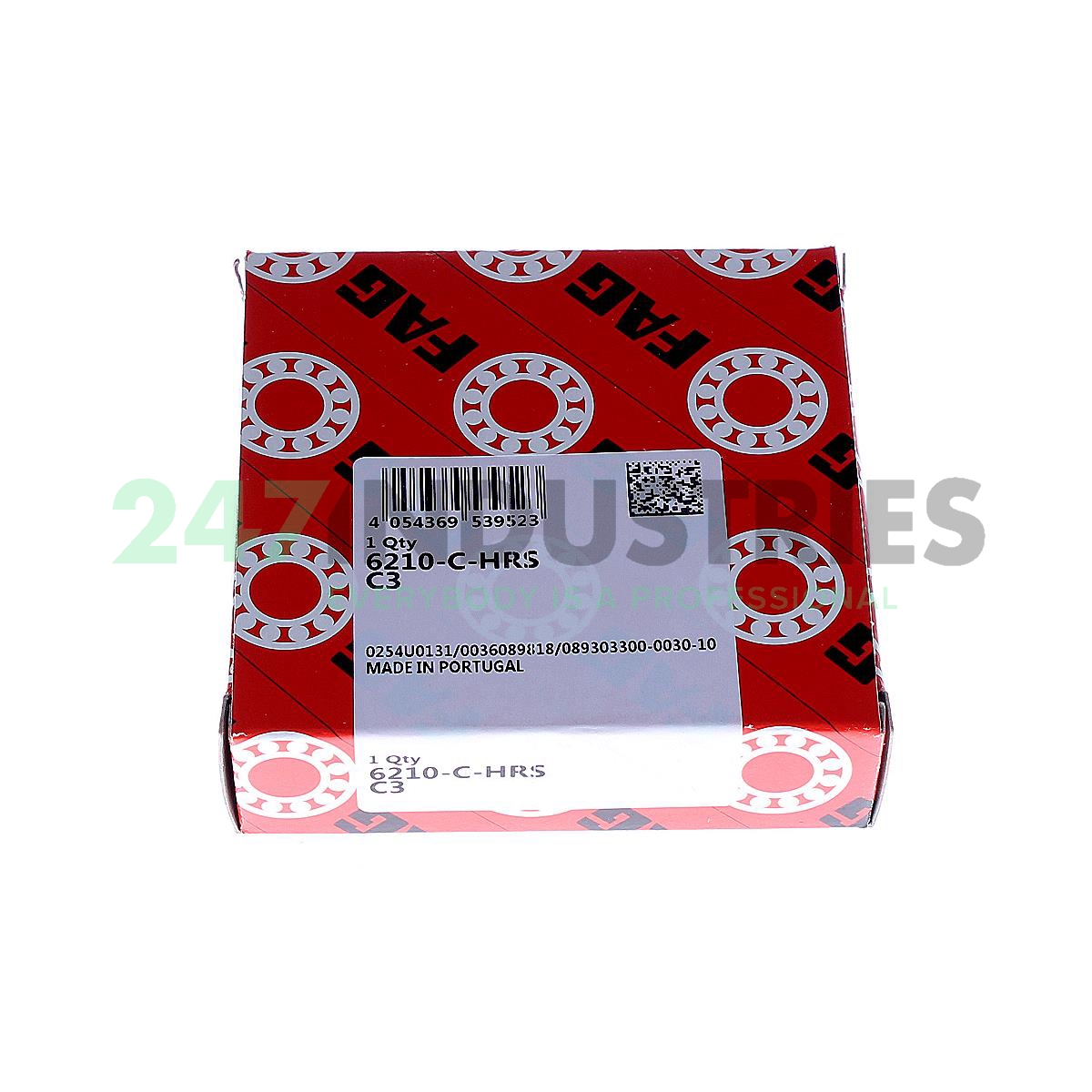

6210-C-HRS-C3 FAG

All dimensions

1. Width (b) mm 20,00

Suffix description

1. C Deep Groove Ball Bearings Of Generation C, Modified Internal Construction
2. HRS High Speed/Low Friction Seal
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 55 pcs
2. Brand FAG
3. Item number 6210-C-HRS-C3 FAG
4. Also known as 0893033000030
   3014152500030
   6210-HRS-C3

5. EAN 4054369539523
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.45

Product Properties

1. Bore C - Cylindrical Bore
2. Seal RH - High Speed Low Friction Seal on One Side
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) "23200.0000"
2. Limiting speed (n G) "6500.0000"
3. ECLASS number 23-05-08-01
4. ECLASS2 number 23-05-08-01
