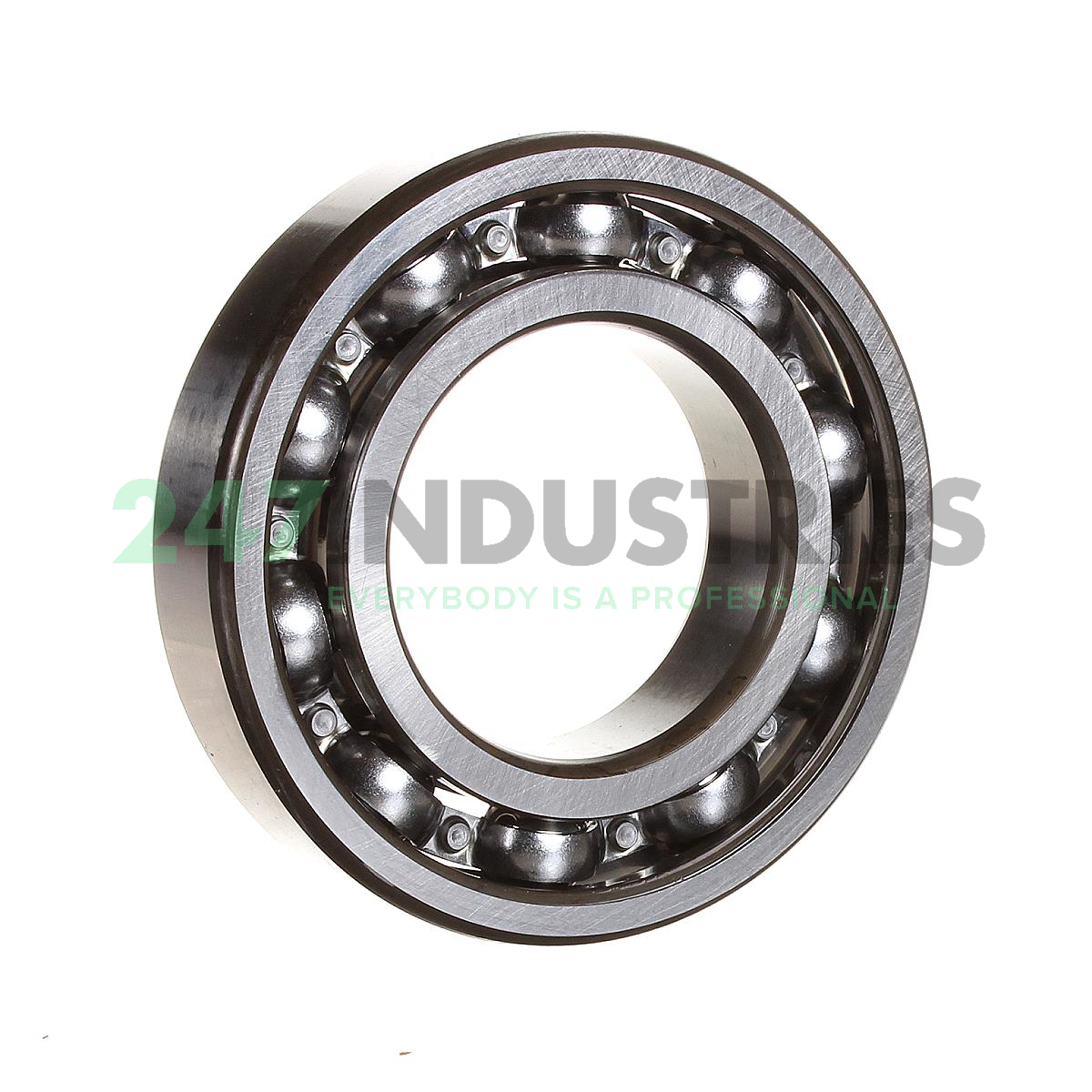

6209X5/30C3PX2 NTN

All dimensions

1. Inner (d) MM 45,00
2. Outer (D) MM 85,00
3. Width (B) MM 19,00
4. Inner (d) Inch 1.7717
5. Outer (D) Inch 3.3465
6. Width (B) Inch 0.7480

Suffix description

1. C3 Internal Clearance Larger Than Normal
2. PX2 Special Tolerance (From PX1 Onward)

Technical details

1. Availability 0 pcs
2. Brand NTN
3. Item number 6209X5/30C3PX2 NTN
4. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.404

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
