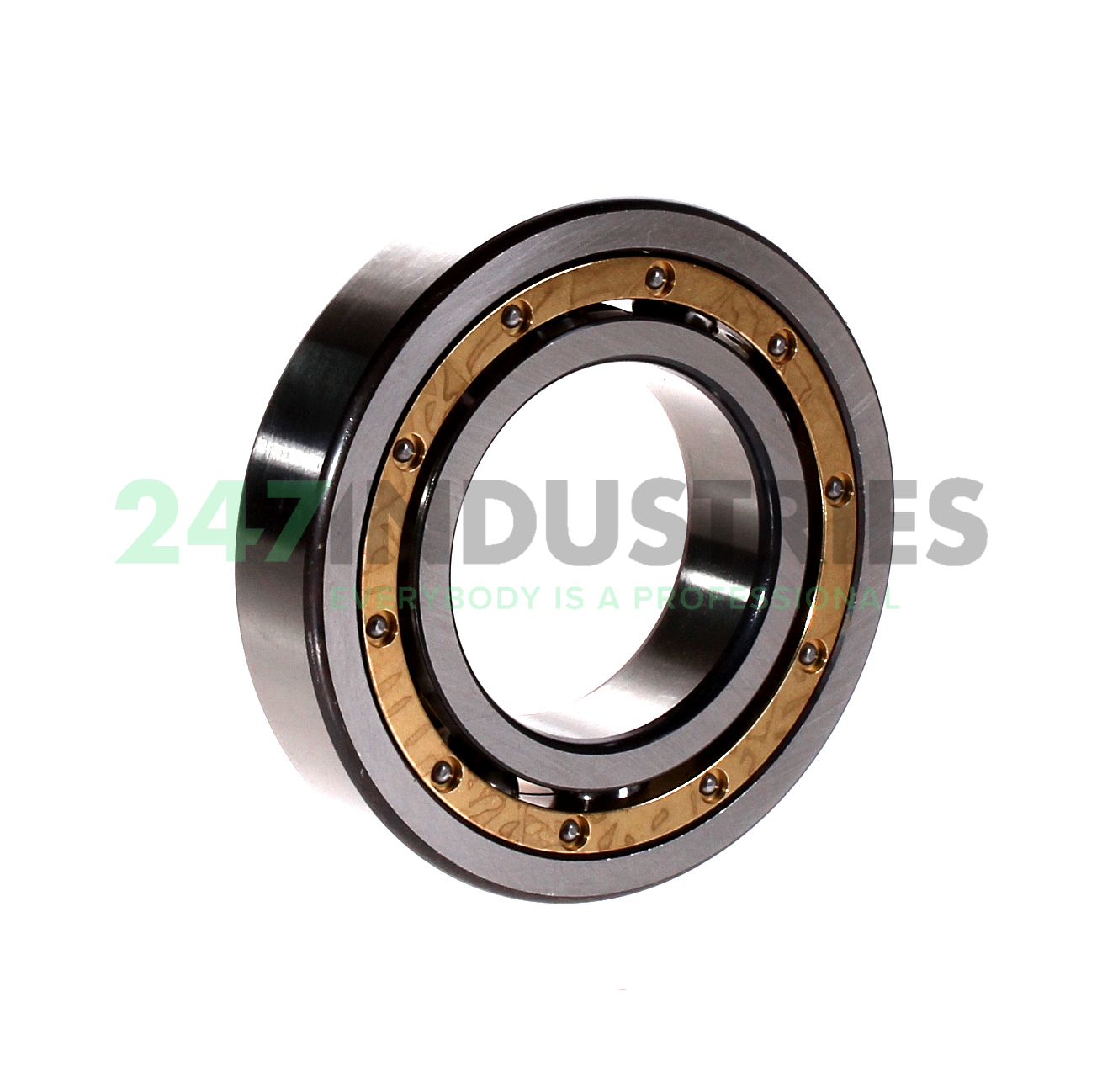

6209MA.P53 FAG

All dimensions

1. Inner (d) MM 45
2. Outer (D) MM 85
3. Width (B) MM 19
4. Inner (d) Inch 1.7717
5. Outer (D) Inch 3.3465
6. Width (B) Inch 0.748

Suffix description

1. MA Machined Brass Cage, Outer Ring Guided
2. P53 Combination Of P5 (Dimensional And Running Accuracy To ISO Tolerance Class 5) And C3 (Internal Clearance Larger Than Normal)

Technical details

1. Availability 2 pcs
2. Brand FAG
3. Item number 6209MA.P53 FAG
4. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.45

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type MA - Brass Cage, Centered on Outer Ring
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision P5 Precision (Higher than P6)
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
