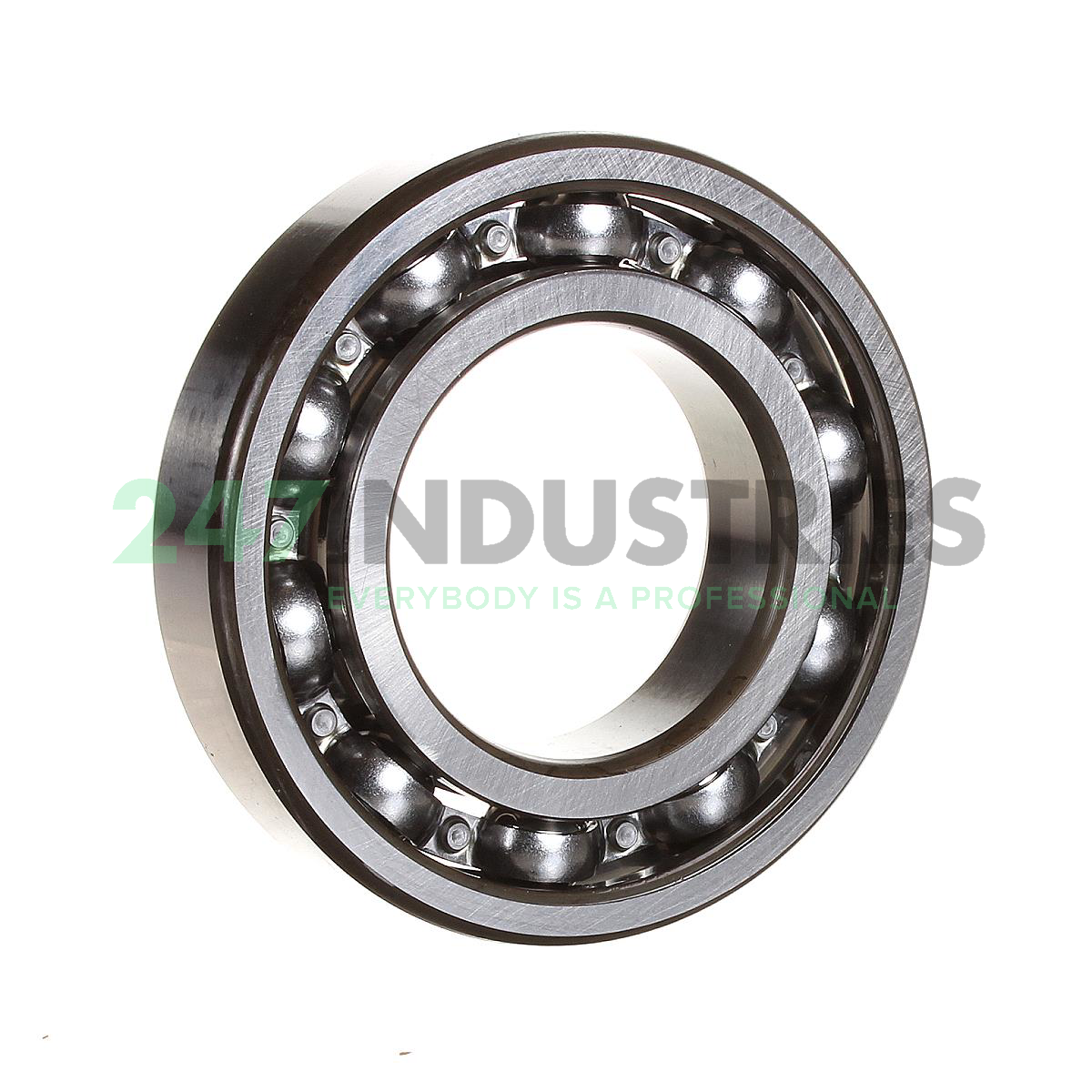

6209A P62 ZVL

All dimensions

1. Inner (d) MM 45,00
2. Outer (D) MM 85,00
3. Width (B) MM 19,00
4. Inner (d) Inch 1.7717
5. Outer (D) Inch 3.3465
6. Width (B) Inch 0.7480

Suffix description

1. A Axial Clearance In Non-Standardized Range (Range In µm - e.g. 3210 A20-30)
2. P62 Combination Of P6 (Dimensional And Running Accuracy To ISO Tolerance Class 6 (Better Than Normal)) And C2 (Bearing Internal Clearance Smaller Than Normal)

Technical details

1. Availability 0 pcs
2. Brand ZVL
3. Item number 6209A P62 ZVL
4. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.404

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C2 Internal Play (Less than Cn)
6. Precision P6 Precision (Higher than Standard)
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
