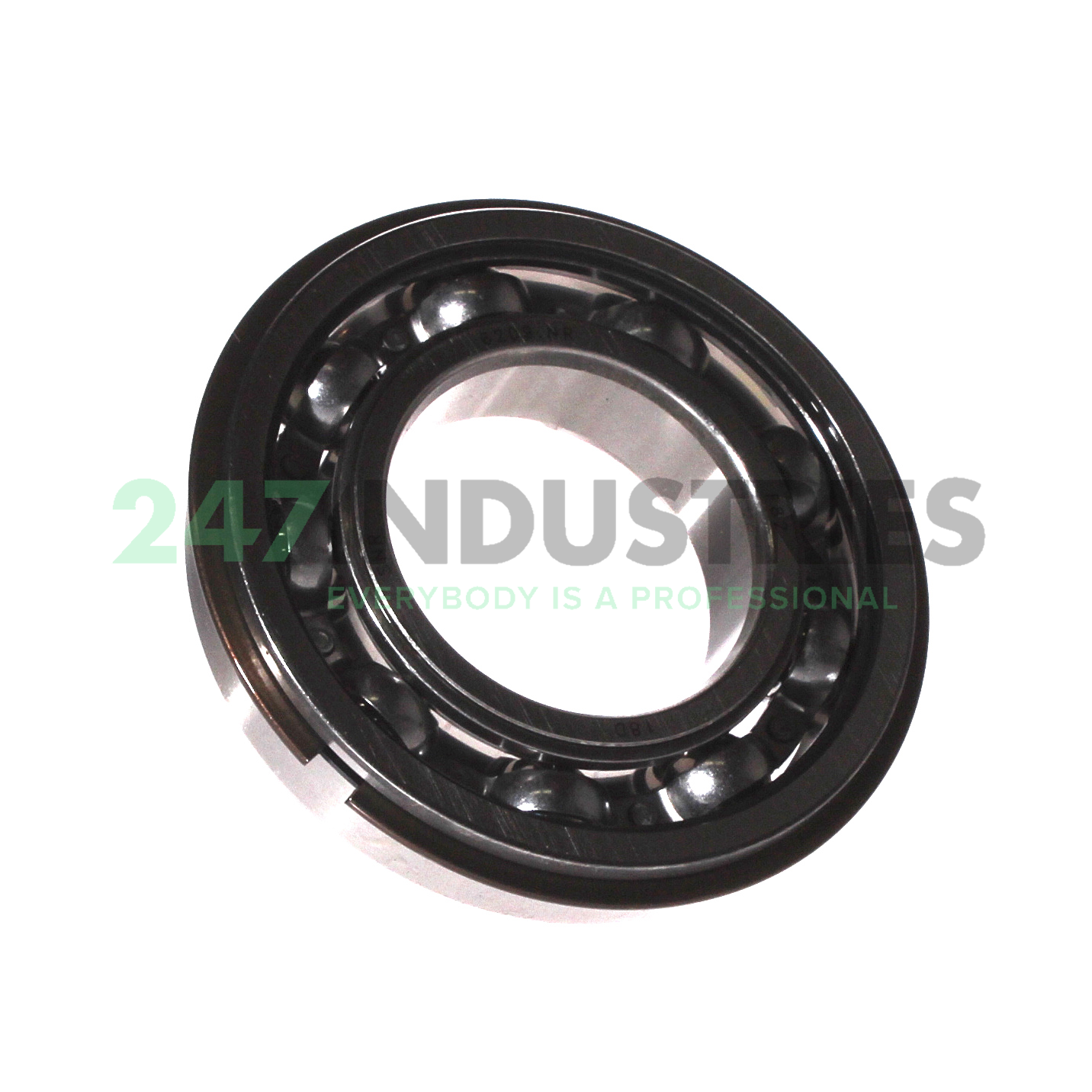

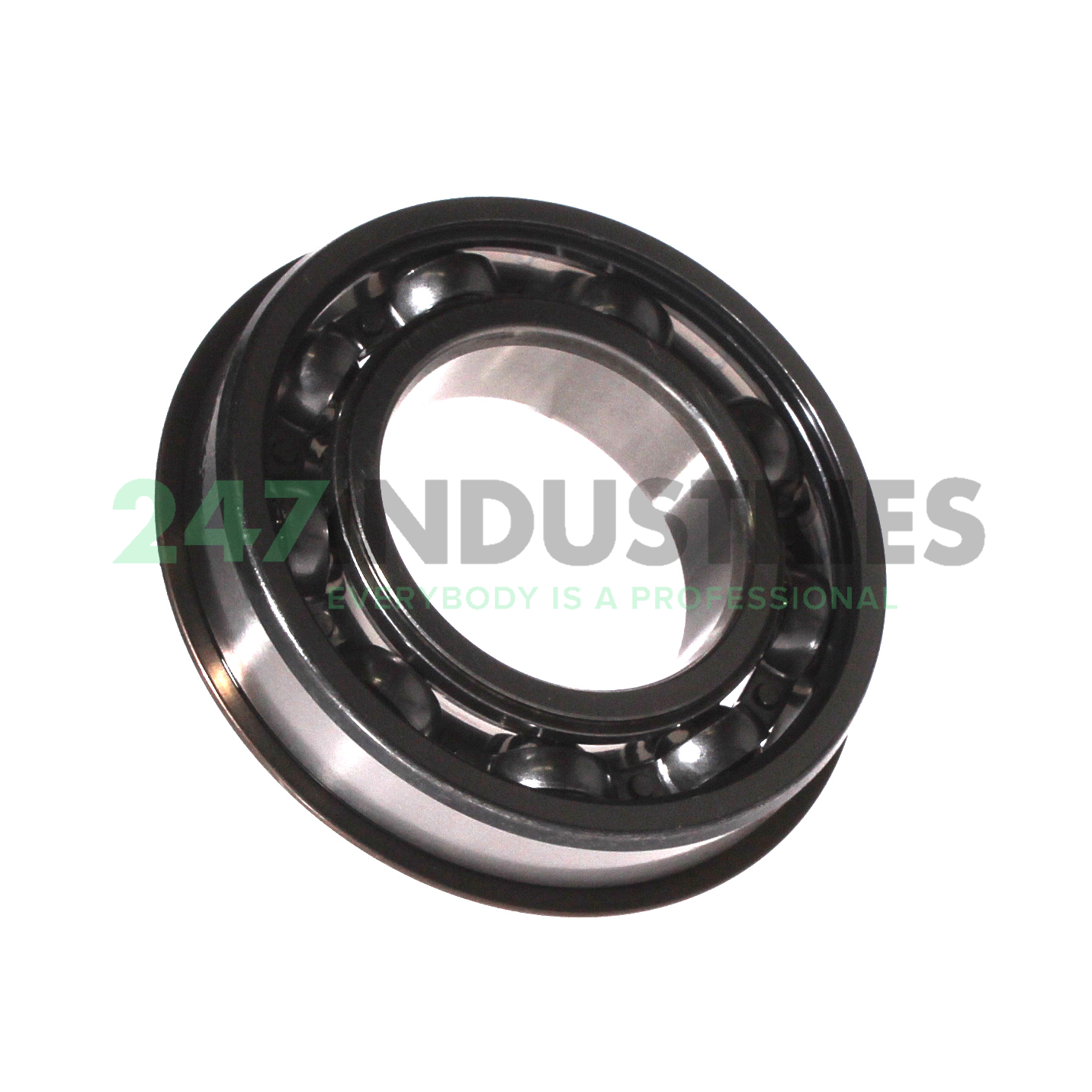

6209.NR SNR

All dimensions

1. Inner (d) MM 45,00
2. Outer (D) MM 85,00
3. Width (B) MM 19,00
4. Inner (d) Inch 1.7717
5. Outer (D) Inch 3.3465
6. Width (B) Inch 0.7480

Suffix description

1. NR Snap Ring Groove In Bearing Outer Ring And Appropriate Snap Ring

Technical details

1. Availability 0 pcs
2. Brand SNR
3. Item number 6209.NR SNR
4. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.401

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification NR - Groove and Snap Ring
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
