6209-C-Z-C3 FAG

13,73 ex VAT
€ 16,61 in VAT
€ 16,61 in VAT
13,73 ex VAT

Guaranteed same day shipment on orders placed before 18.00h (CEST)
This product is available from stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

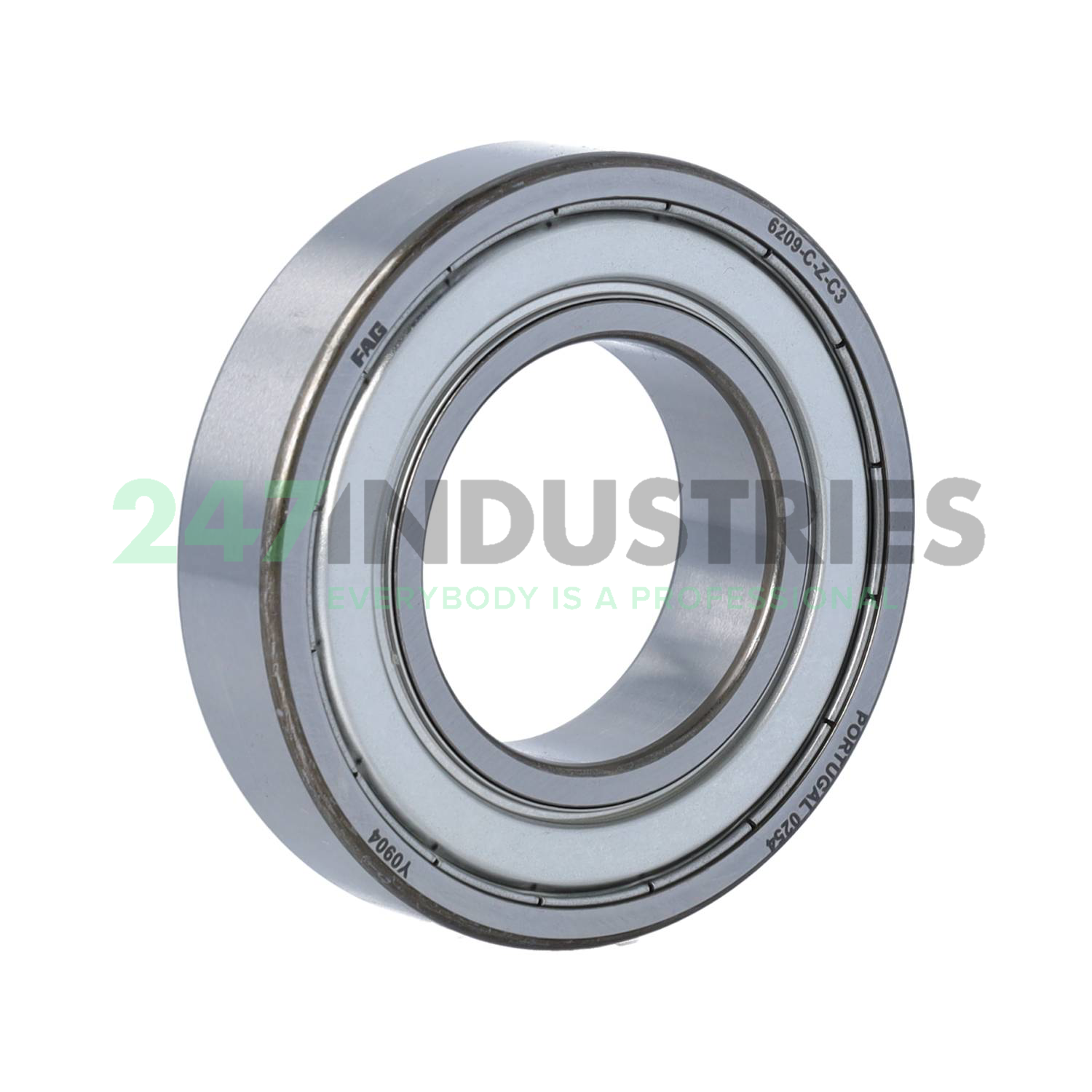

6209-C-Z-C3 FAG

Stock
19 pcs in stock and ready for shipment
Brand FAG
Article number 6209-C-Z-C3 FAG
Inside diameter 45mm
Outside diameter 85mm
Width 19mm
Product description
Help with this product

Downloads and links

Similar to: 6209-C-Z-C3 FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 45
  2. Outer (D) MM 85
  3. Width (B) MM 19
  4. Inner (d) Inch 1.7717
  5. Outer (D) Inch 3.3465
  6. Width (B) Inch 0.748
  7. Width (b) mm 19

Suffix description

  1. C Deep Groove Ball Bearings Of Generation C, Modified Internal Construction
  2. Z Shield Of Pressed Sheet Steel On One Side Of The Bearing
  3. C3 Internal Clearance Larger Than Normal

Technical details

  1. Availability 19 pcs
  2. Brand FAG
  3. Item number 6209-C-Z-C3 FAG
  4. Also known as 0873248570030
    3016292930030
    6209-Z-C3
  5. EAN 4054369535815
  6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

  1. Weight (kg) 0.41

Product Properties

  1. Bore C - Cylindrical Bore
  2. Seal Z - Steel Seal on One Side
  3. Cage Type S - Steel or Standard Cage
  4. External Modification No External Modification
  5. Radial Internal Play C3 Internal Play (Higher than Cn)
  6. Precision Standard Precision
  7. Lubrication Standard Lubrication
  8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
  9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. Basic static load rating, radial (C 0r) 20300
  2. Limiting speed (n G) 12700
  3. Reference speed (n ϑr) 9900
  4. ECLASS number 23-05-08-01
  5. ECLASS2 number 23-05-08-01

Downloads and links

  1. Link to manufacturer Link to manufacturer
